1999 DORNIER HTVM/E-200

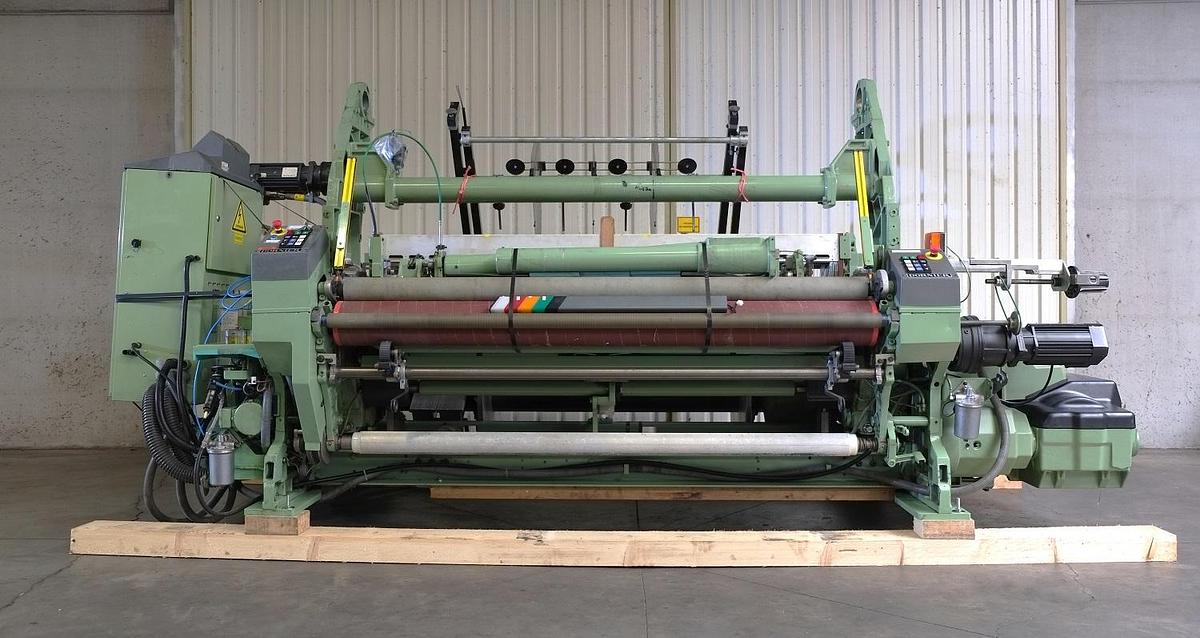

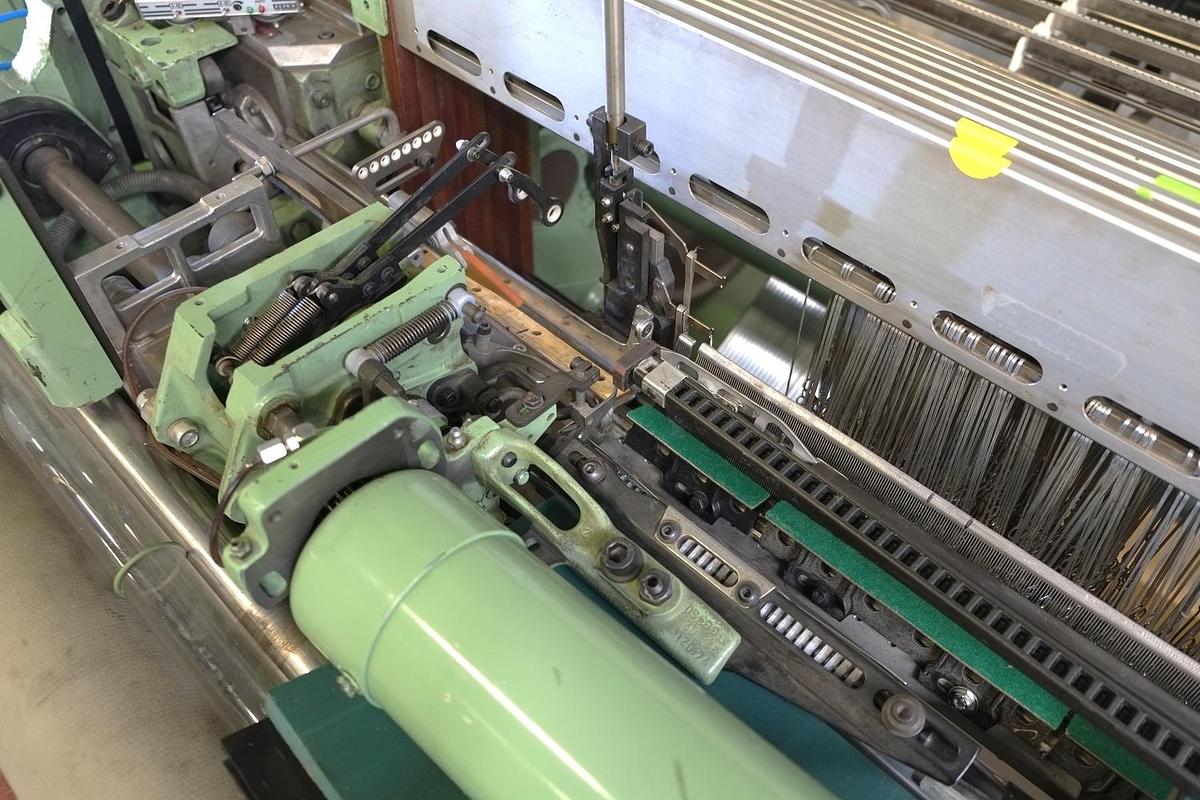

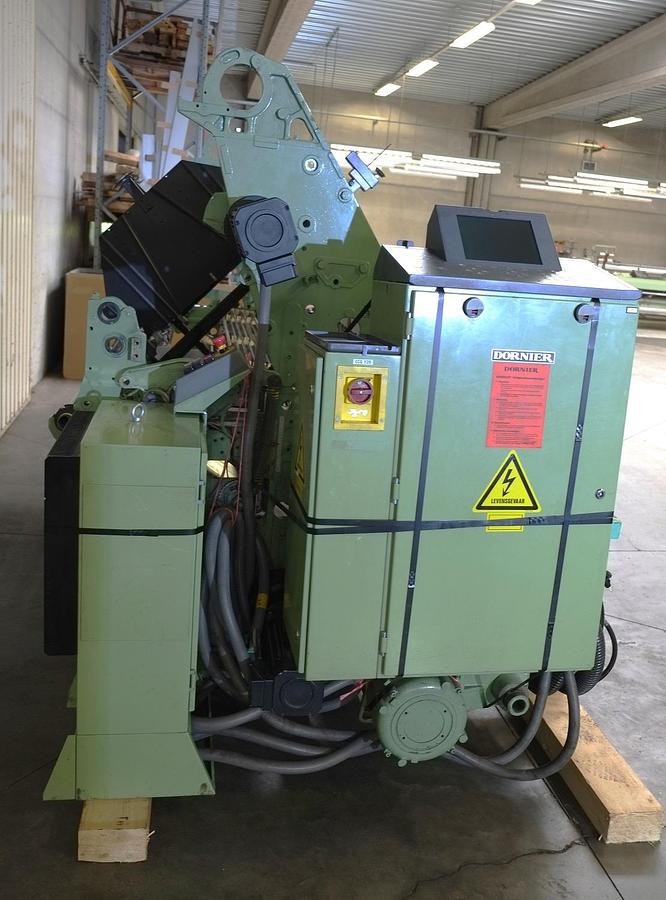

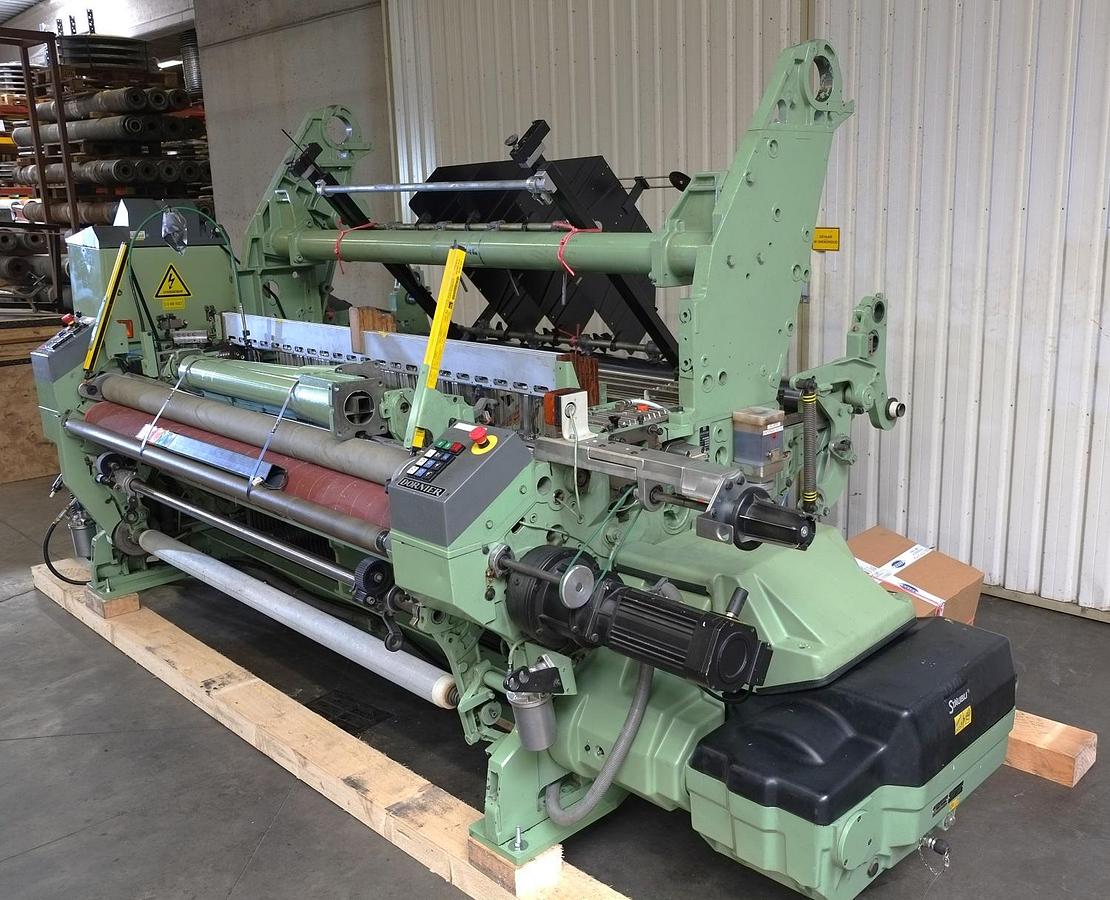

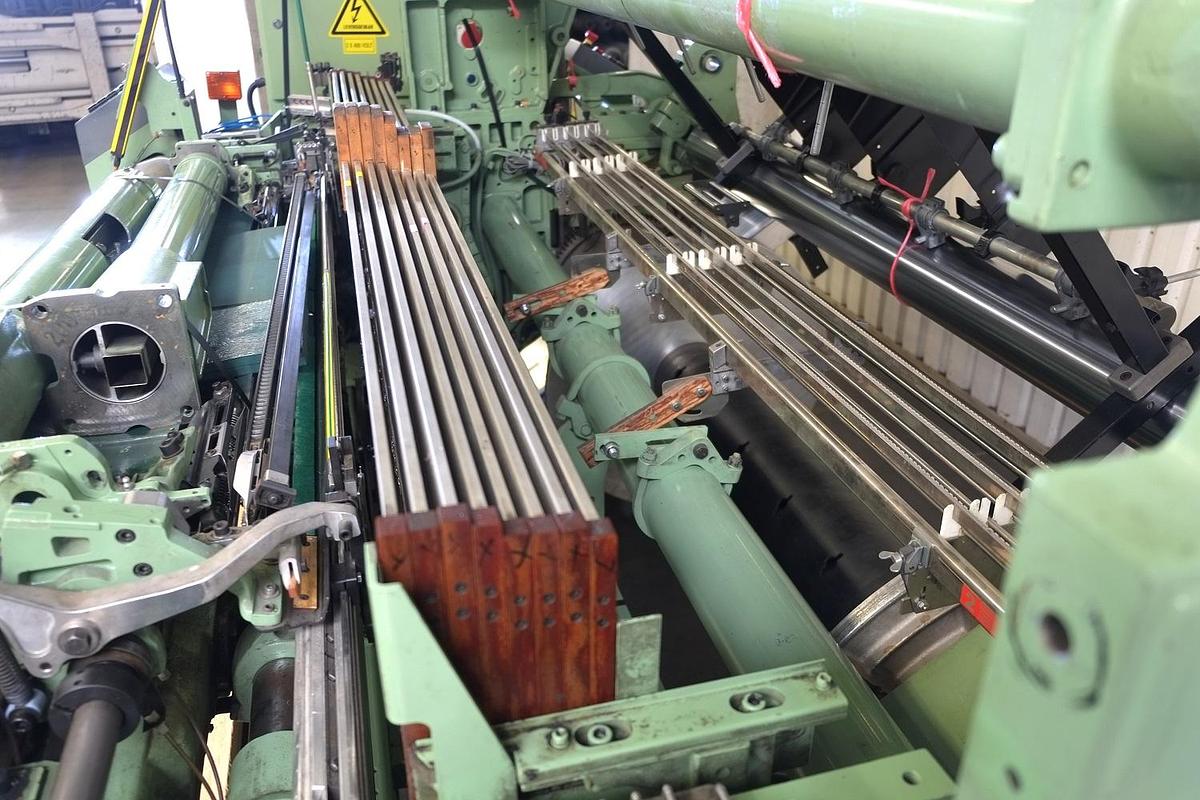

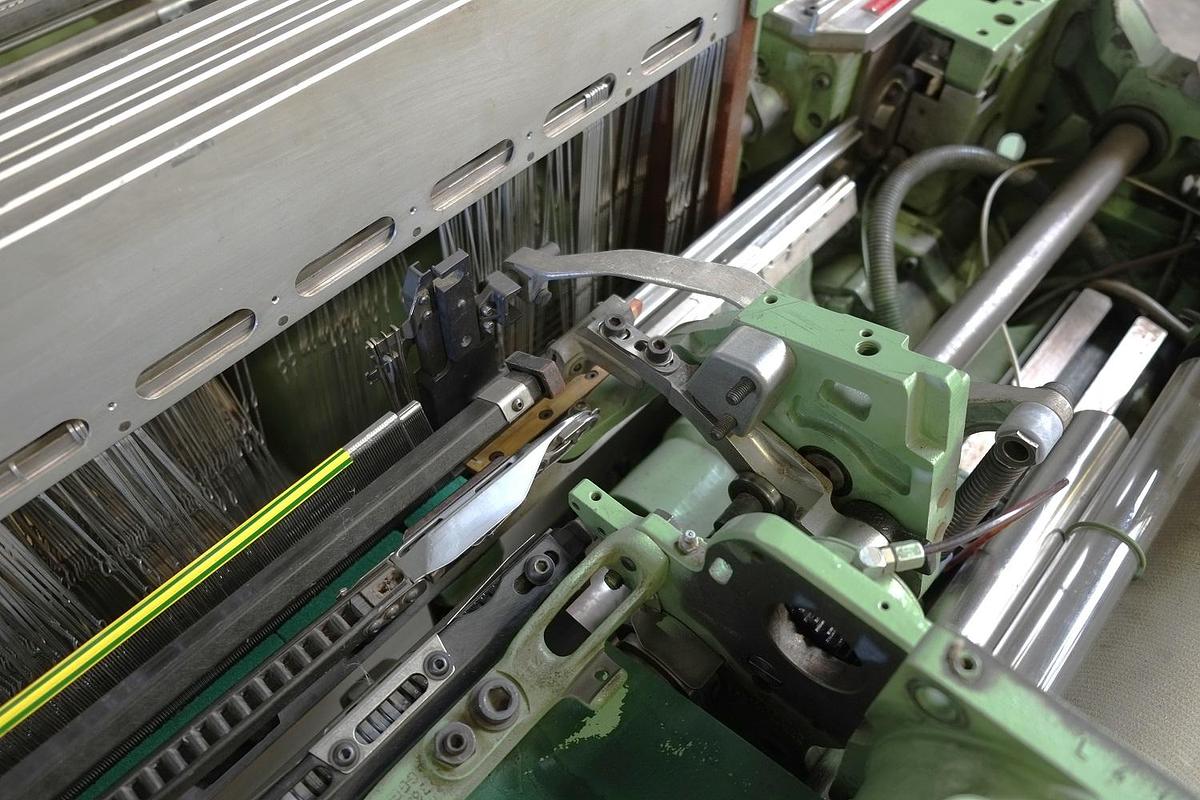

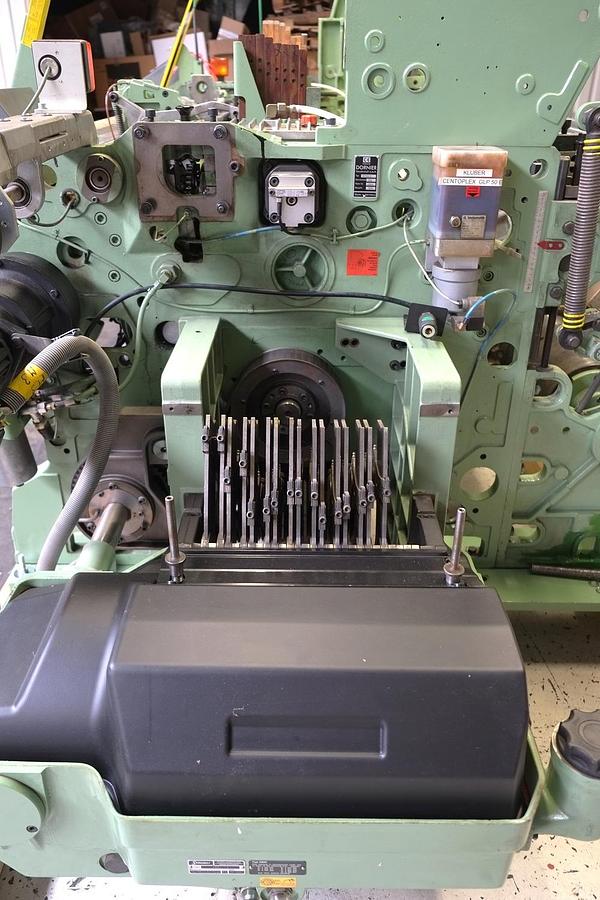

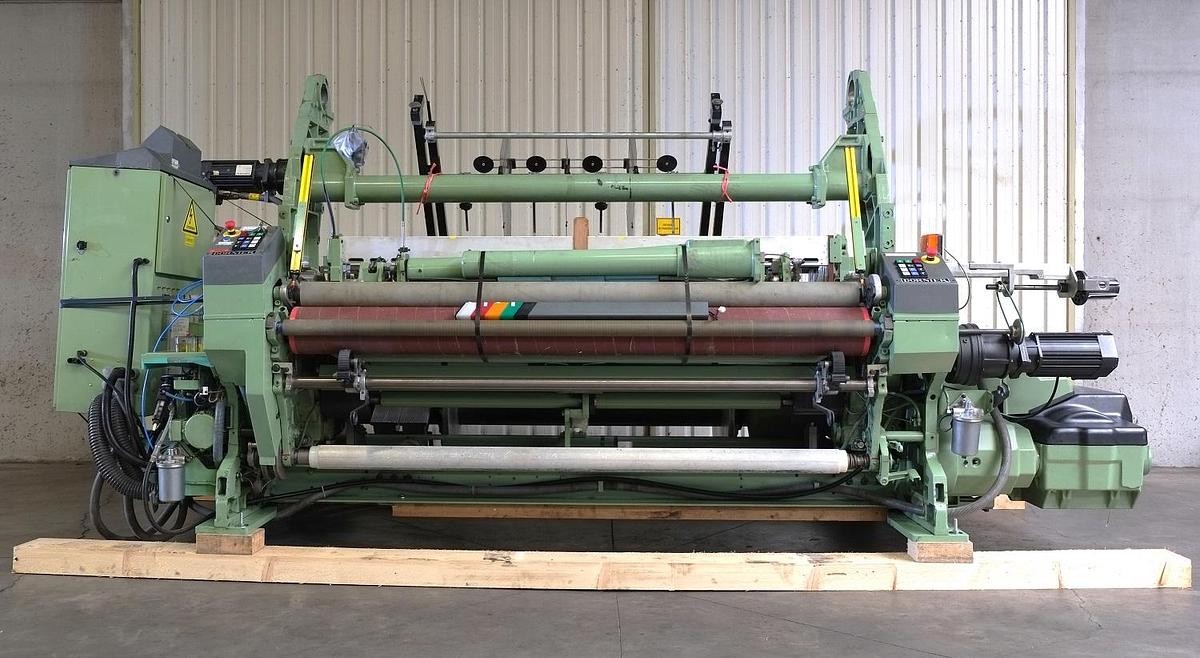

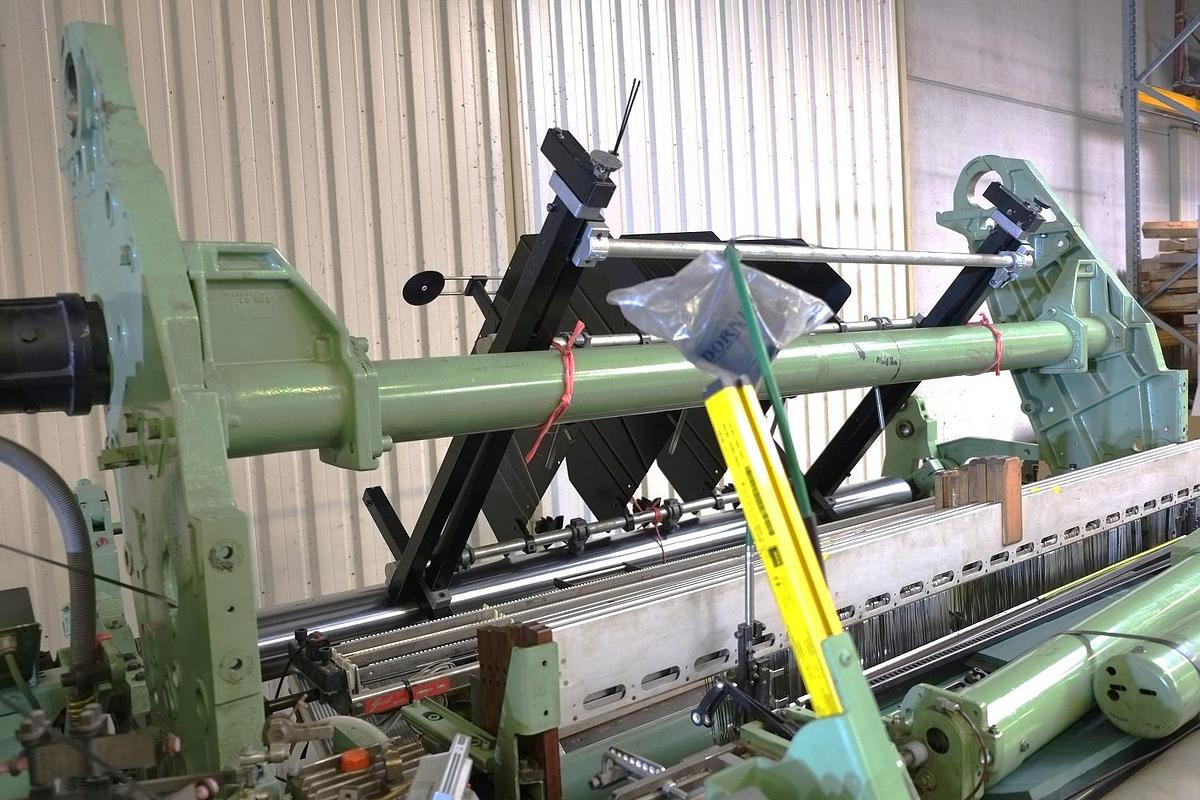

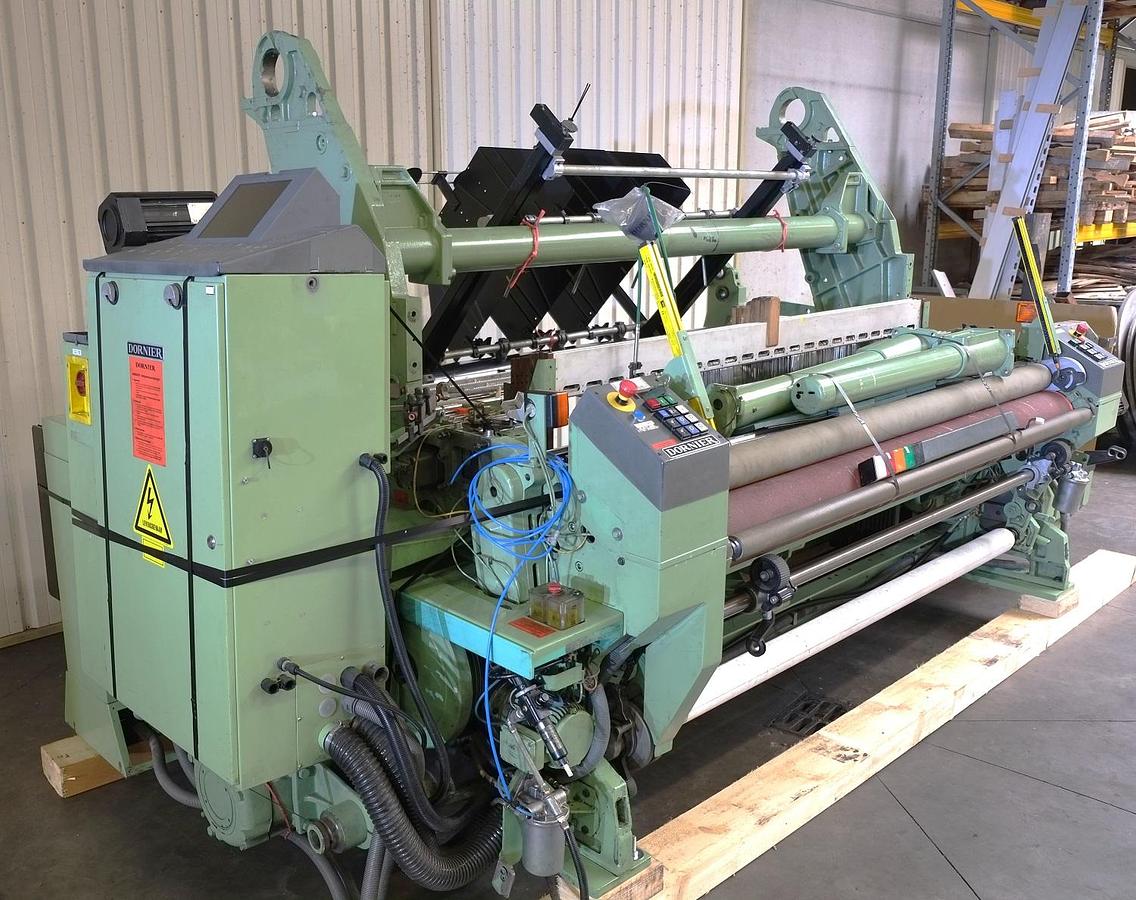

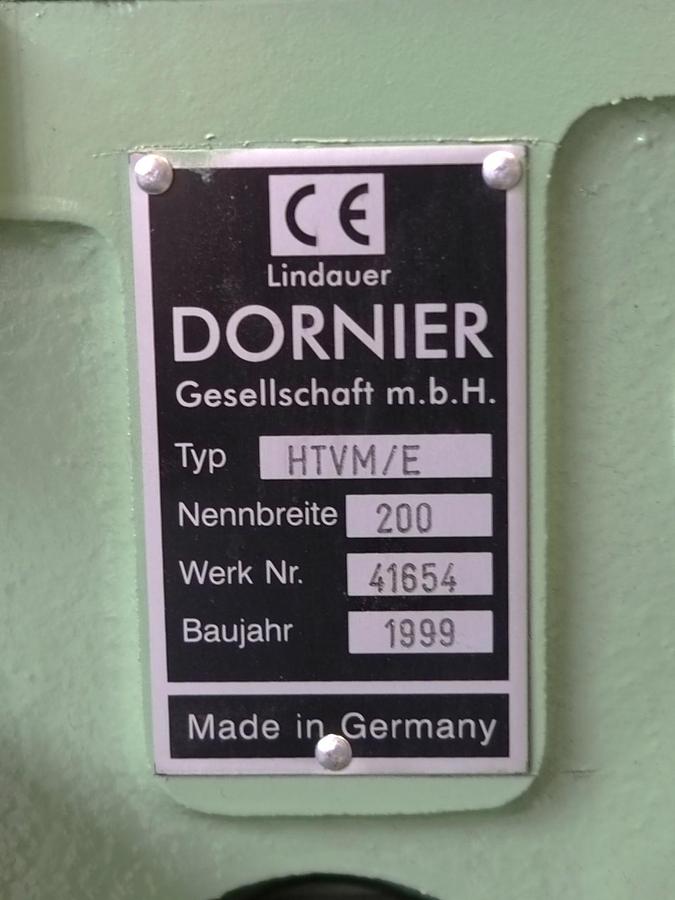

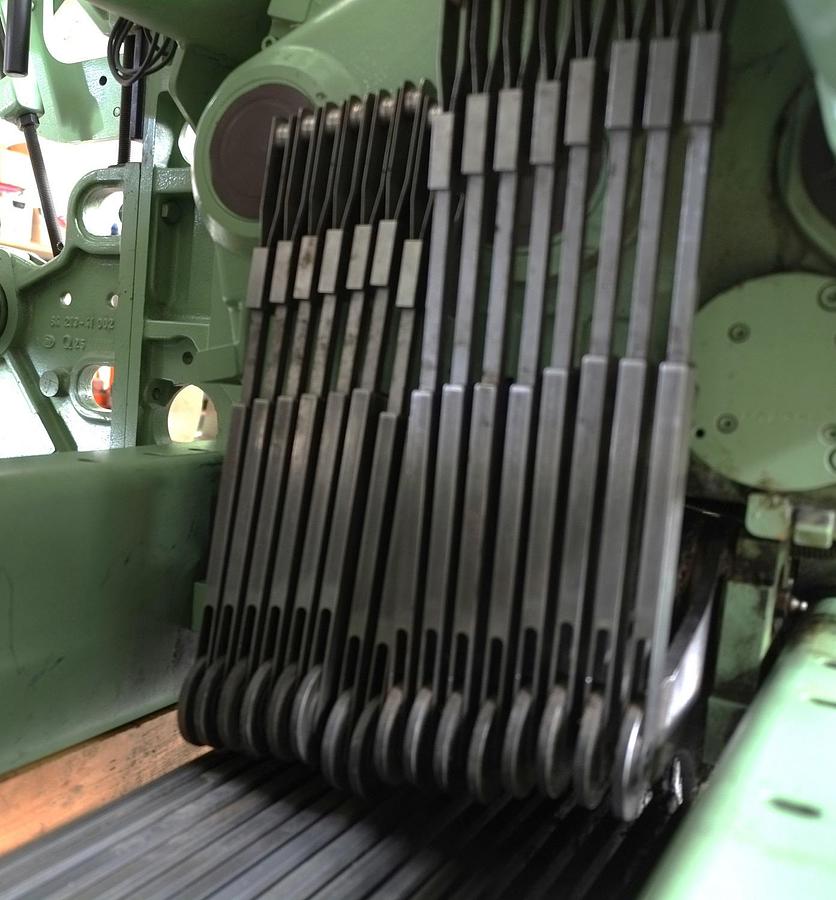

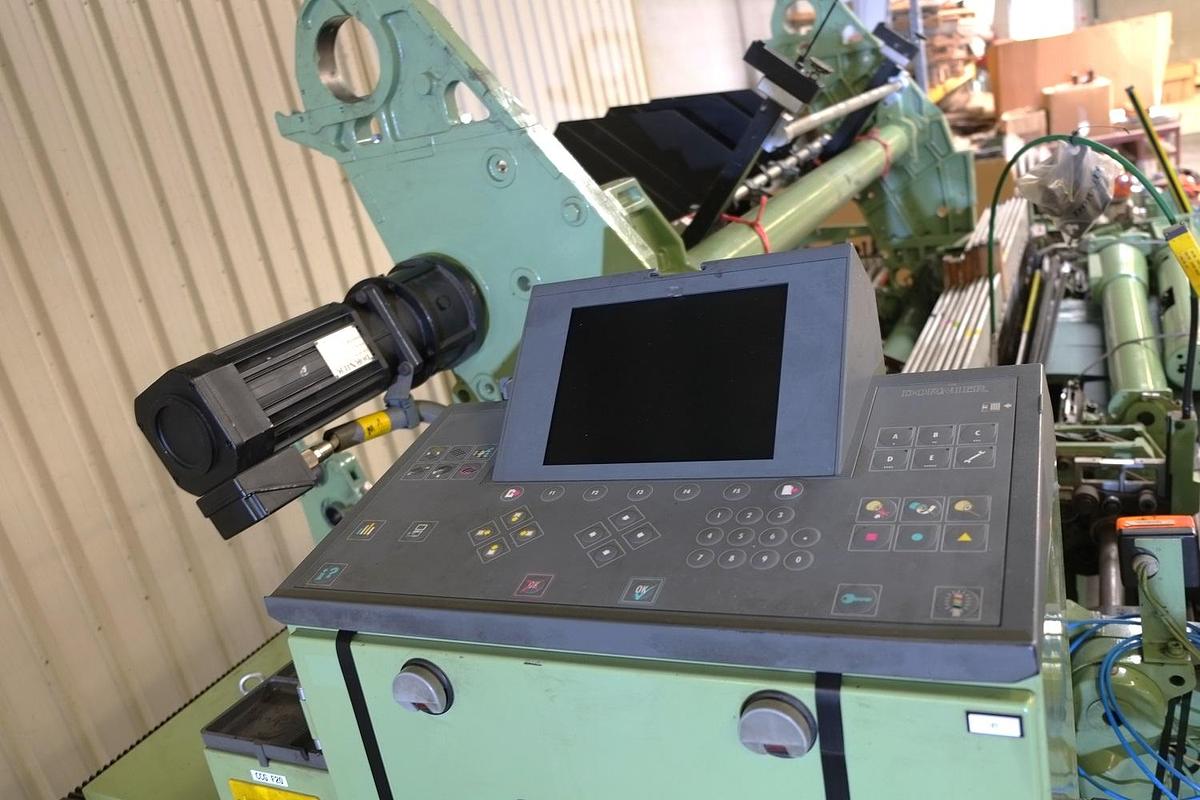

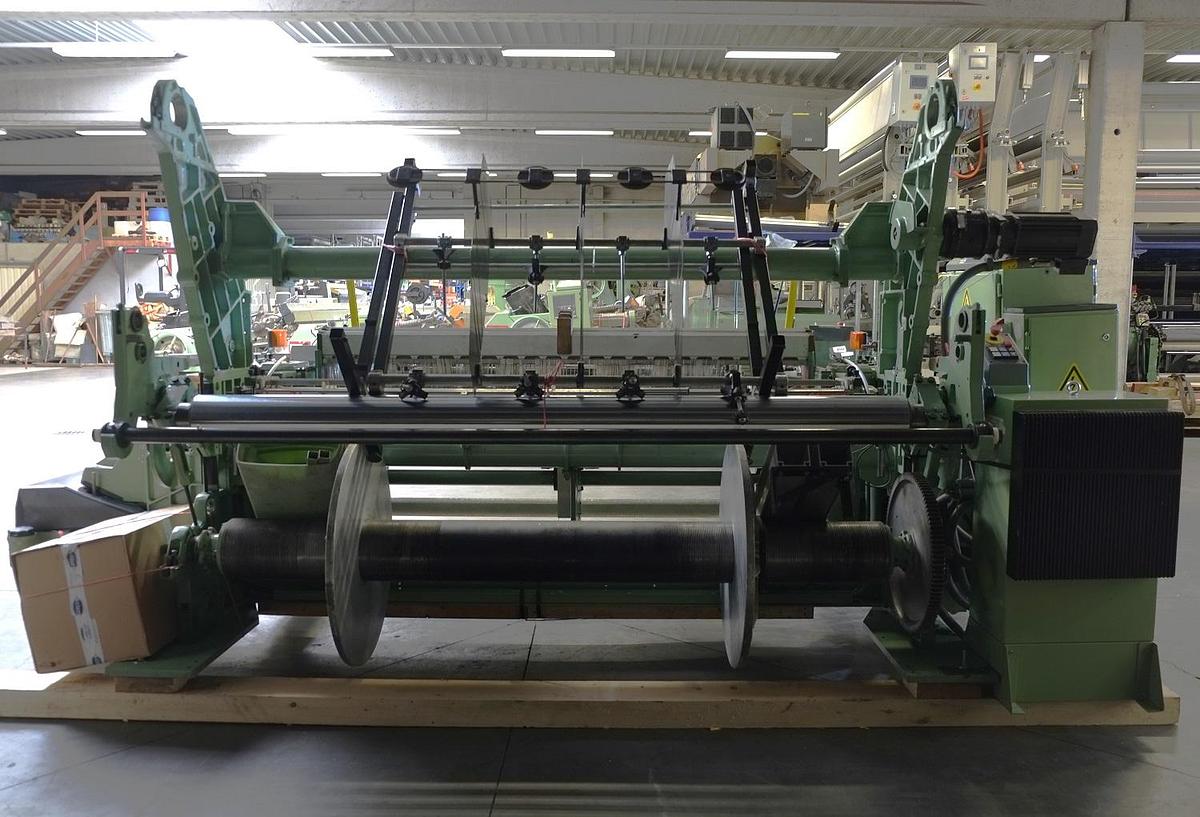

DORNIER Tire-cord rapier loom type HTVM/E-200 serial number 41654 year of construction 1999, nominal working width 2000mm, with electronic STAUBLI dobby type 2861/2 year of construction 2004, 16 levers installed. Details : heavy electronic let-off motor for ground- and upper beam and heavy take-up motor controlled by LENZE devices, Dialog panel 2, 2 mechanical weft colours (pick/pick), combined bobbin-feeder support, 2 weft accumulators DORNIER type CHRONO X2-M (CANBUS), GROB warp motion with 3 detection bars, 8 heald frames 13” C, healds as on loom, 1 tension roll diam. 140 mm with spring right and left side, 2 pressure rolls, prepared for tucking-in devices but without tucking-in devices, mechanical waste cutter RHS & LHS, standard temples, left and right grippers, waste split system right and left side, take-up system of the waste selvedge with waste dustbin, cloth roll drive system, 1 cloth roller, ground warp beam diameter 800mm, ground gear with adapters, motorized upper beam construction, without fancy warp beam, without upper guiding roll, without upper warp gear.

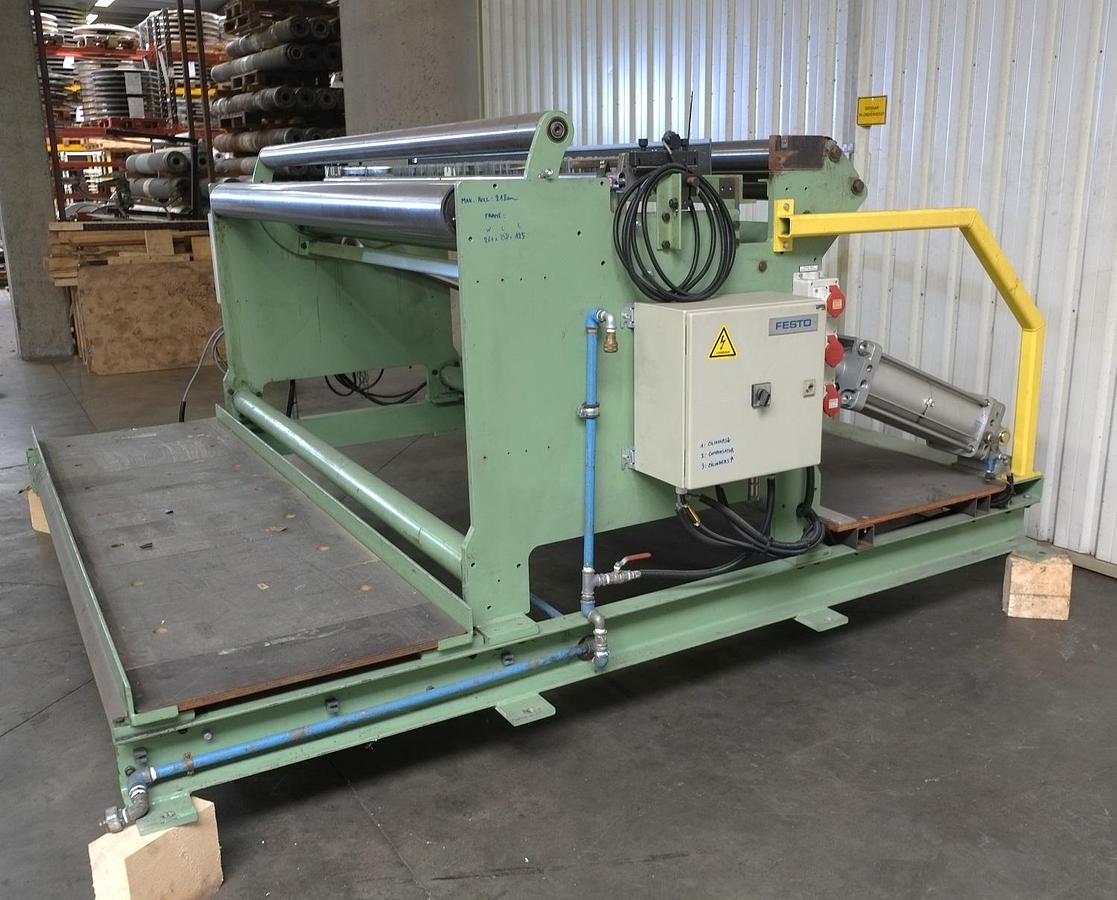

Including Tire cord frame, maximum nominal width 200cm. Details : walking floor / pneumatic Festo driving system with heavy Festo pneumatic pistons RHS&LHS with following functions 1. Cylinders downwards / 2. Compensator / 3. Cylinders upwards; working air pressure 6 bar/ fixation profile for reed / warp detection Grob with 5 detection bars / guiding rolls (max. 218cm) / walking floor. Dimensions mounted construction Tire cord frame : 261cm x 258cm x 125cm
