2011 PICANOL OMS-4-P-340

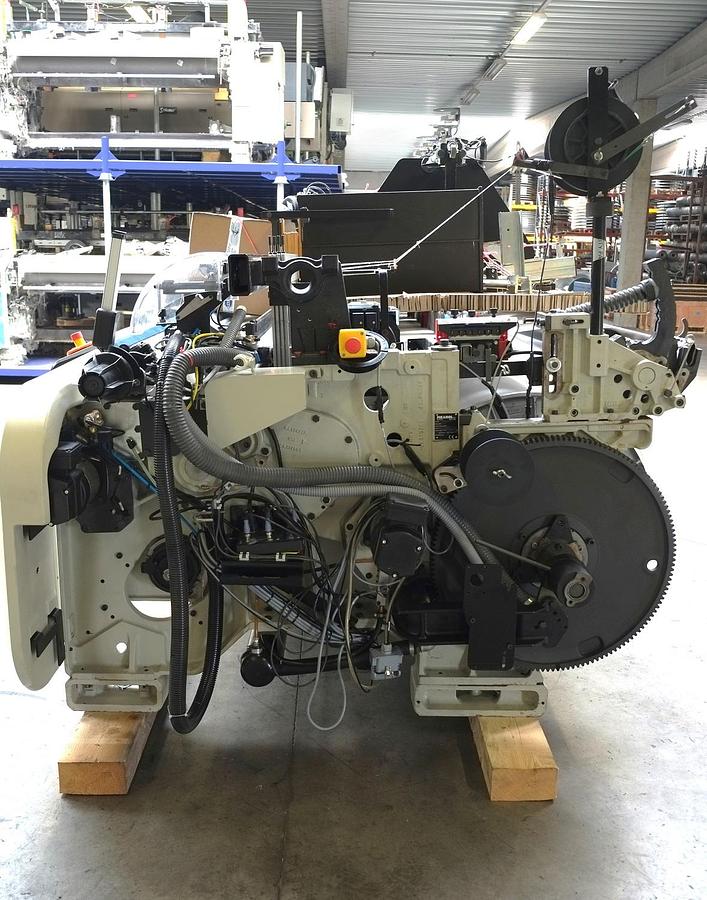

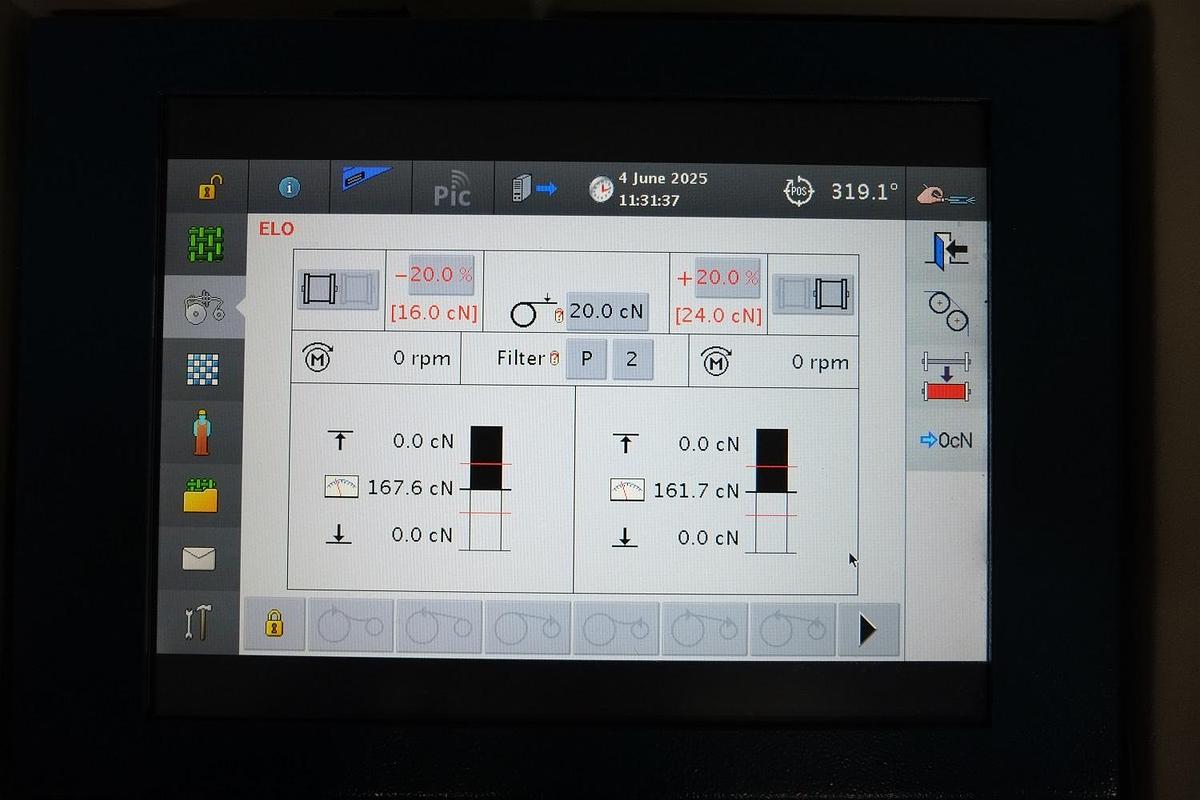

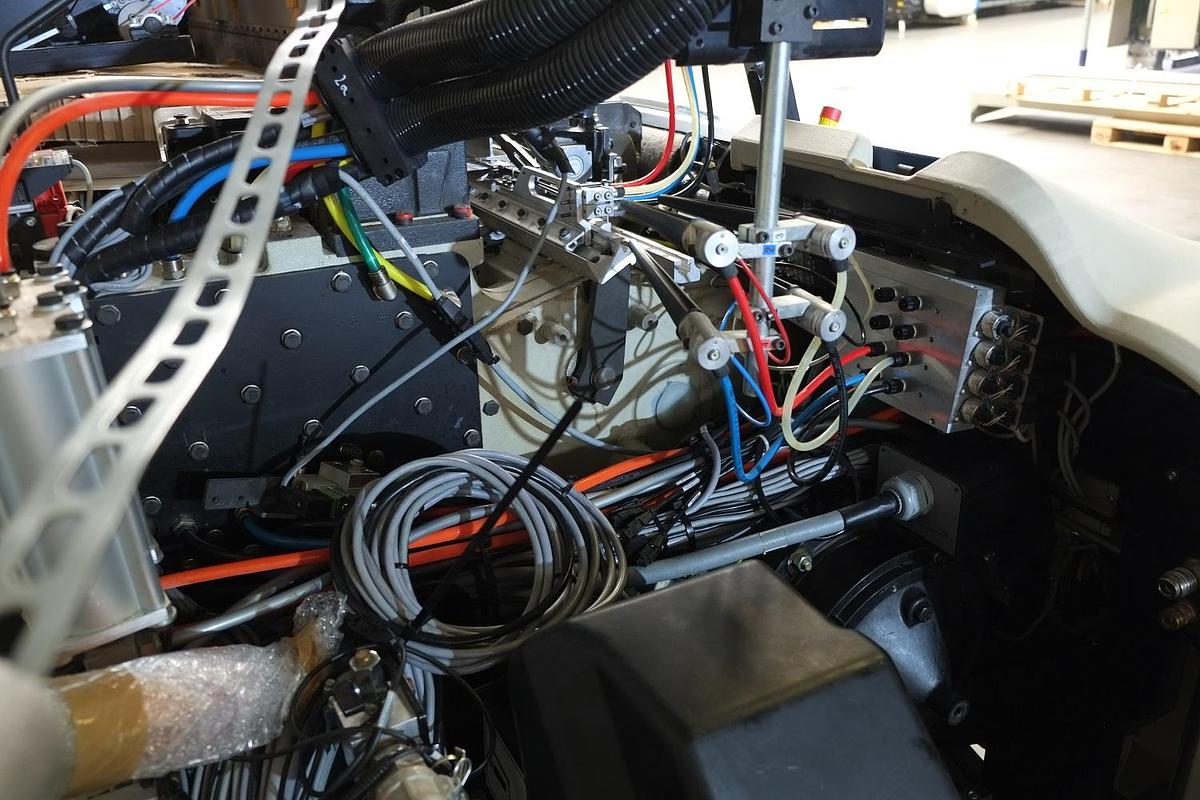

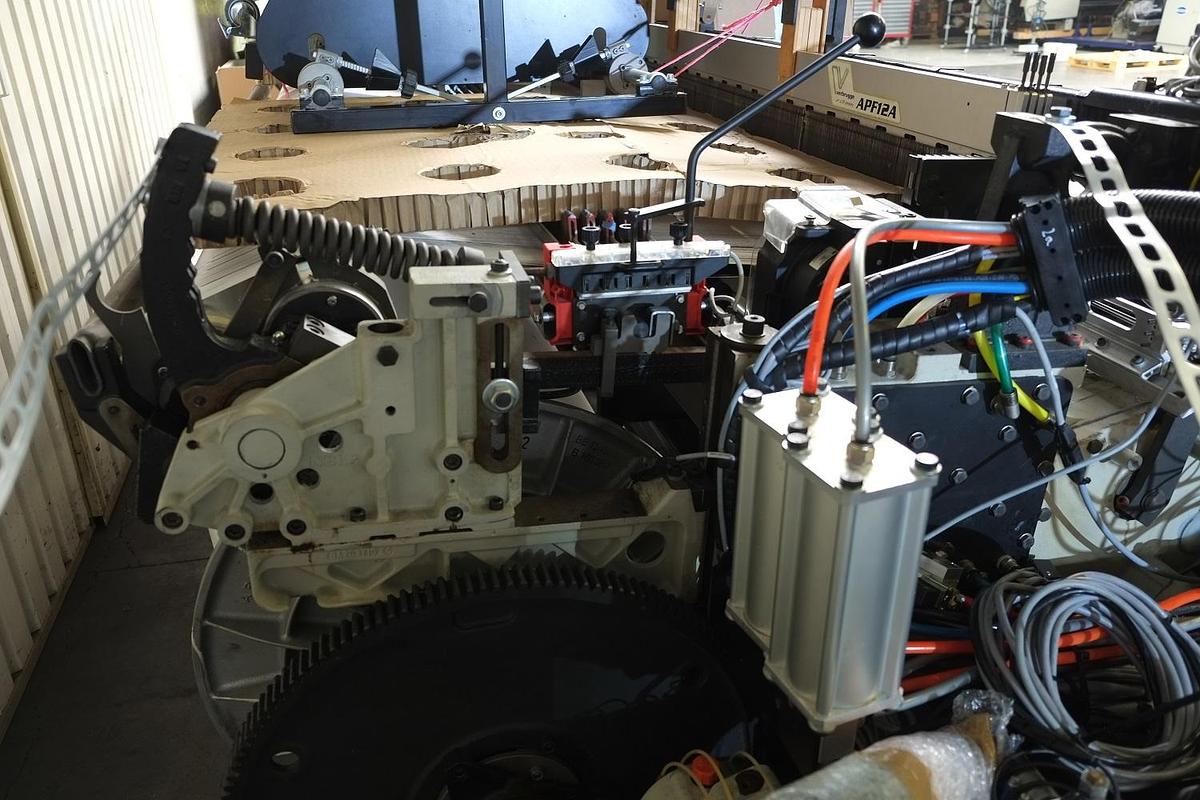

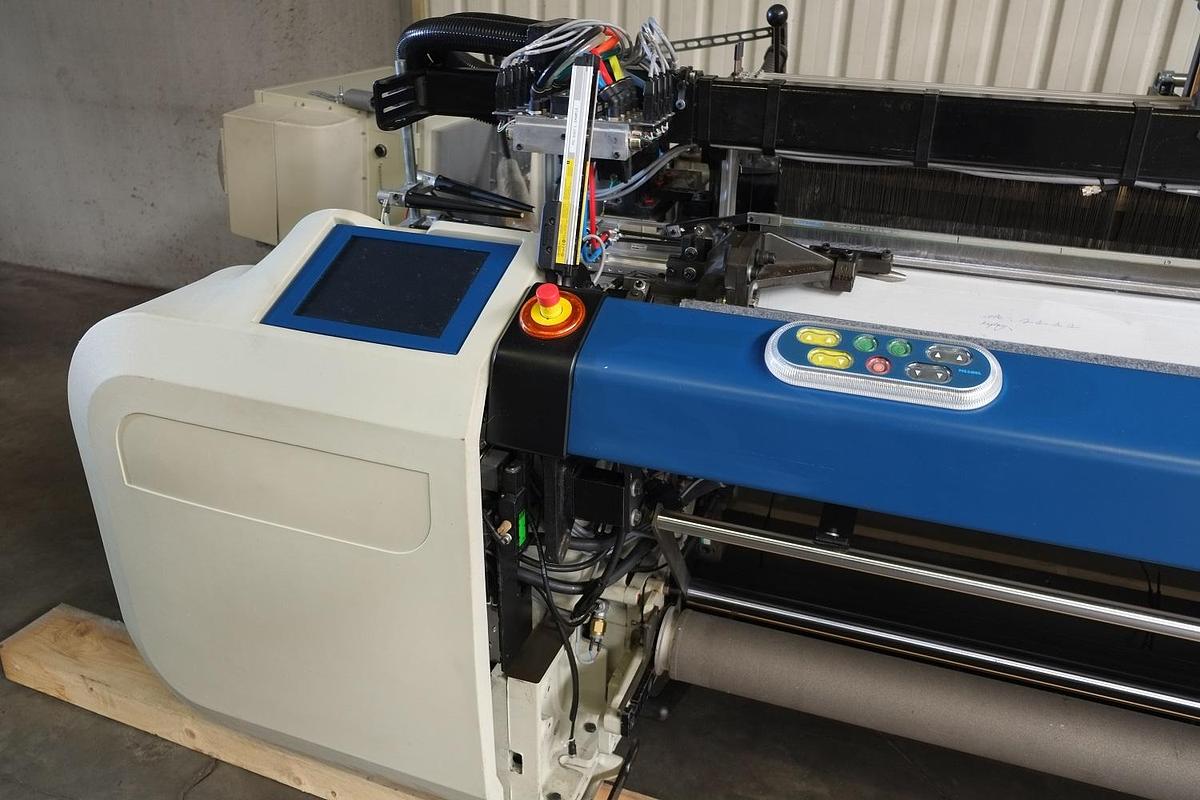

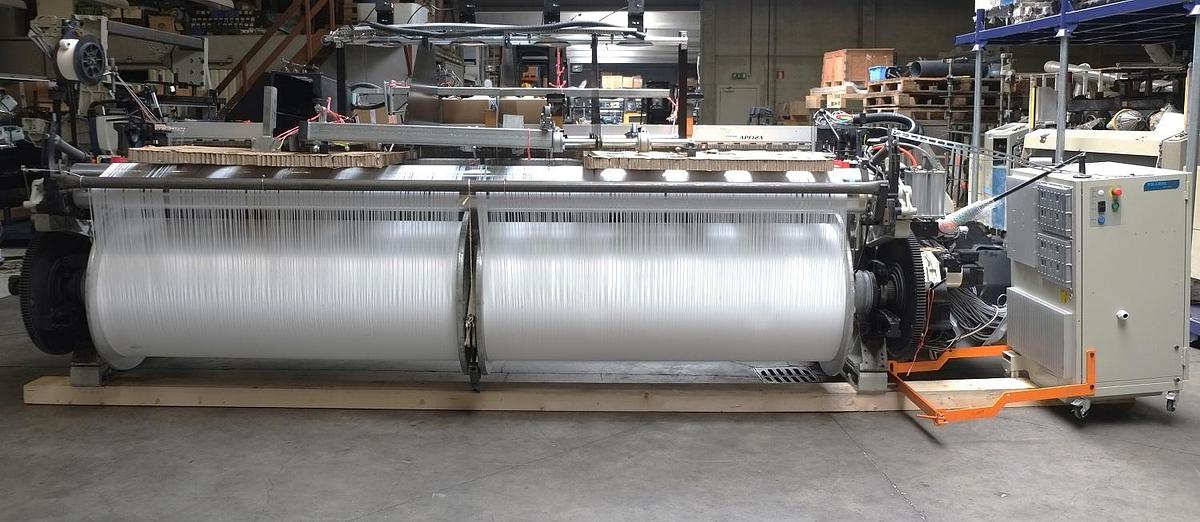

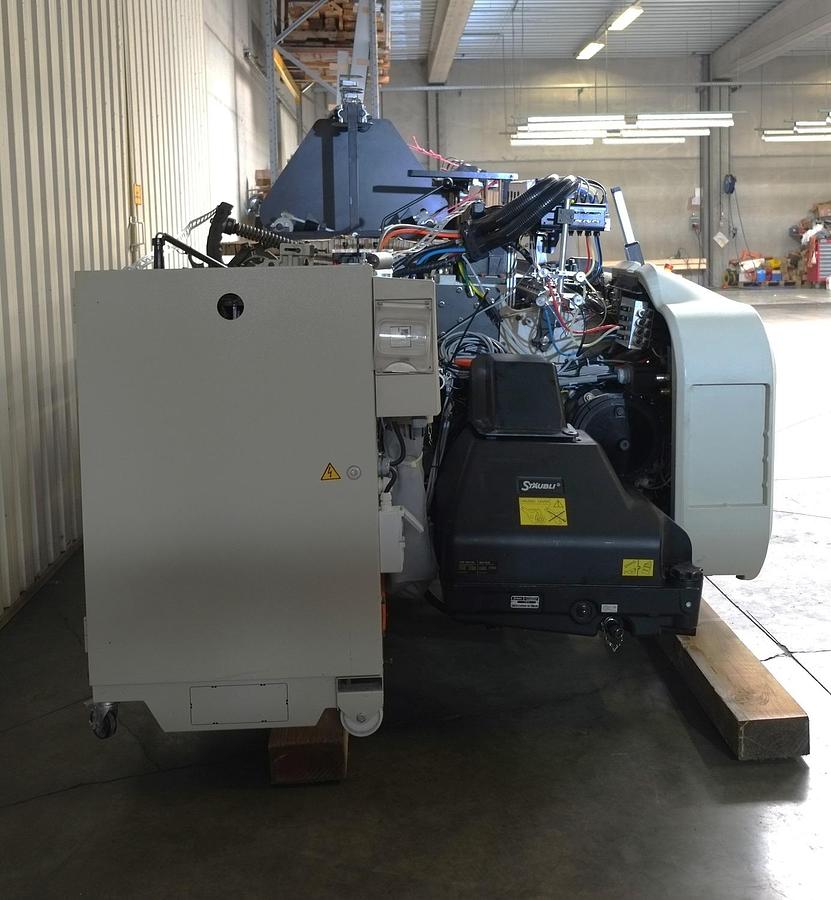

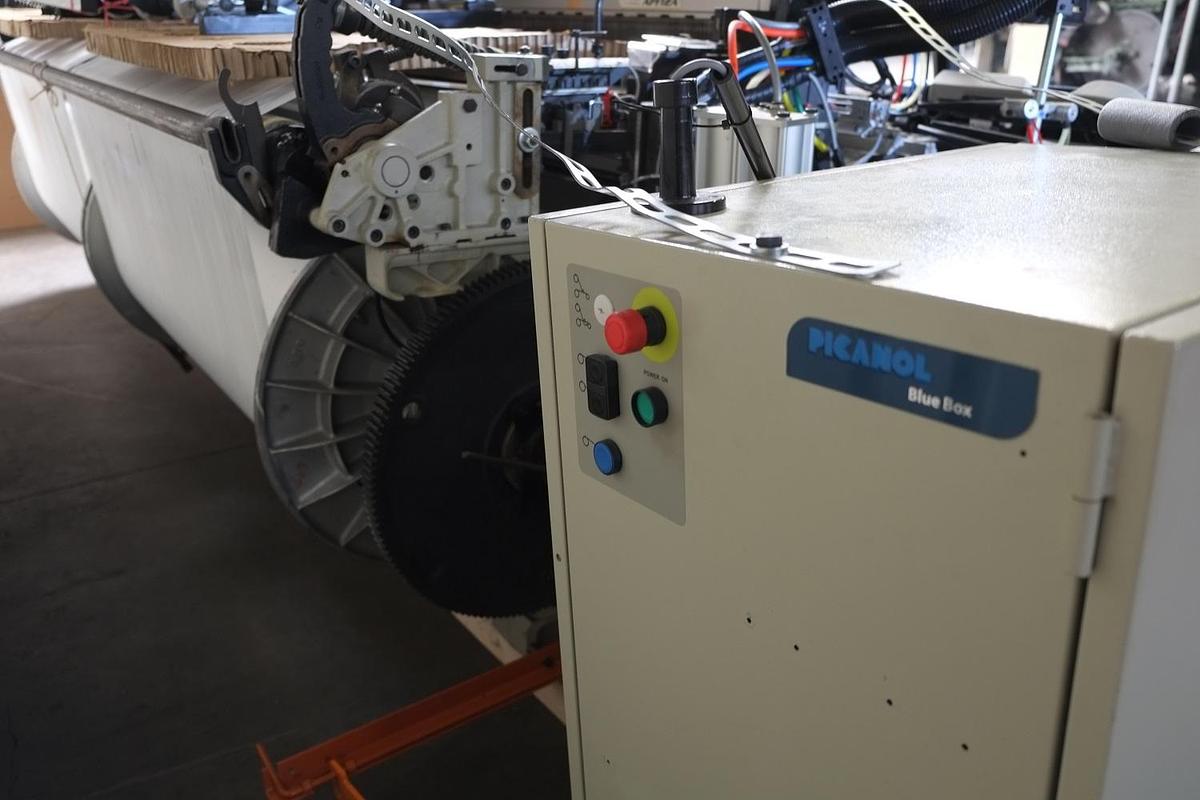

PICANOL air jet weaving loom type OMS-4-P-340 construction year of construction 05/2011, serial number 306614, working width 3400mm, 4 colours, cam box Staubli type 1781A, 11 levers installed. Equipped with : SUMO, ELO RHS, ELO LHS, ETU, PRA II plus, 4 weft colours complete (but equipped for 8 colours), 4 weft feeders Picanol Blue22 EasySet with PFL and balloon breaker, feeder stand, bobbin creel, double warp tension rolls Ø 140mm, Spring RHS&LHS, double pressure roll, E-Leno RHS&LHS, warp detection GROB with 5 detection bars, 4 heald frames DRC30 Verbrugge APF12A 13” C-type, blue touchscreen, waste cutter RHS+MID, waste system, waste dustbin, split warp beam RHS&LHS with flanges 805mm, internal cloth roll drive system, cloth roll, Airmaster, Blue Box (=Ldec), 800 RPM, DEMO loom, 15.583 running meters production.

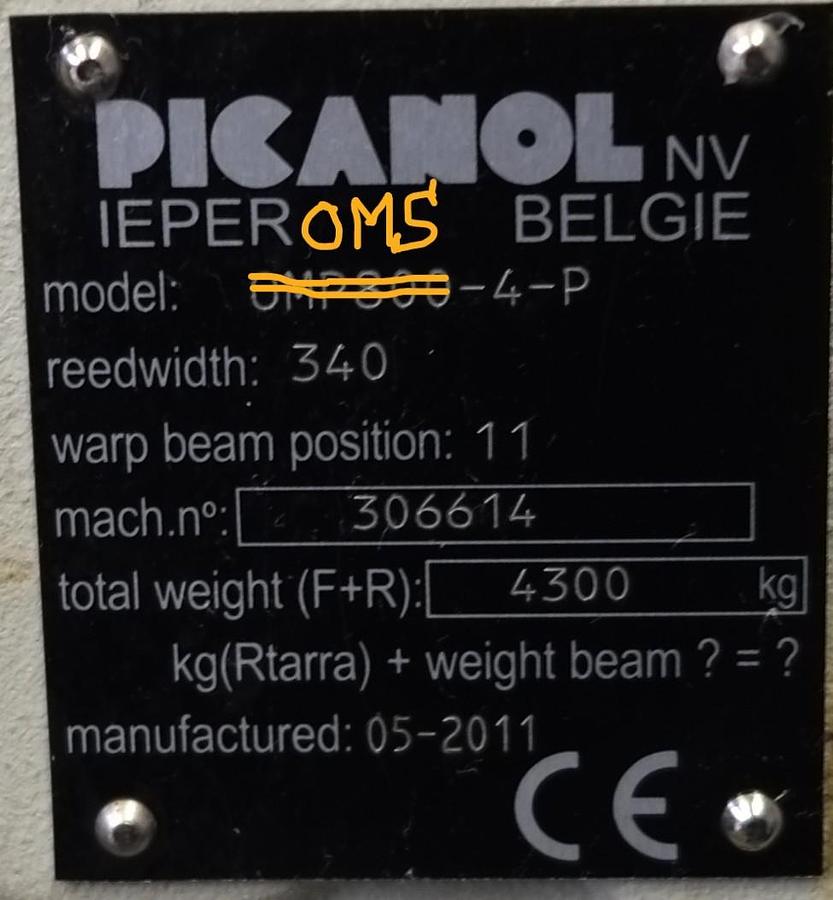

(Note : this is the first OMS-4-P-340 but with faulty description OMP800-4-P-340 on plate).
