2018 mayer-karl FILSIZE-S-F-1800

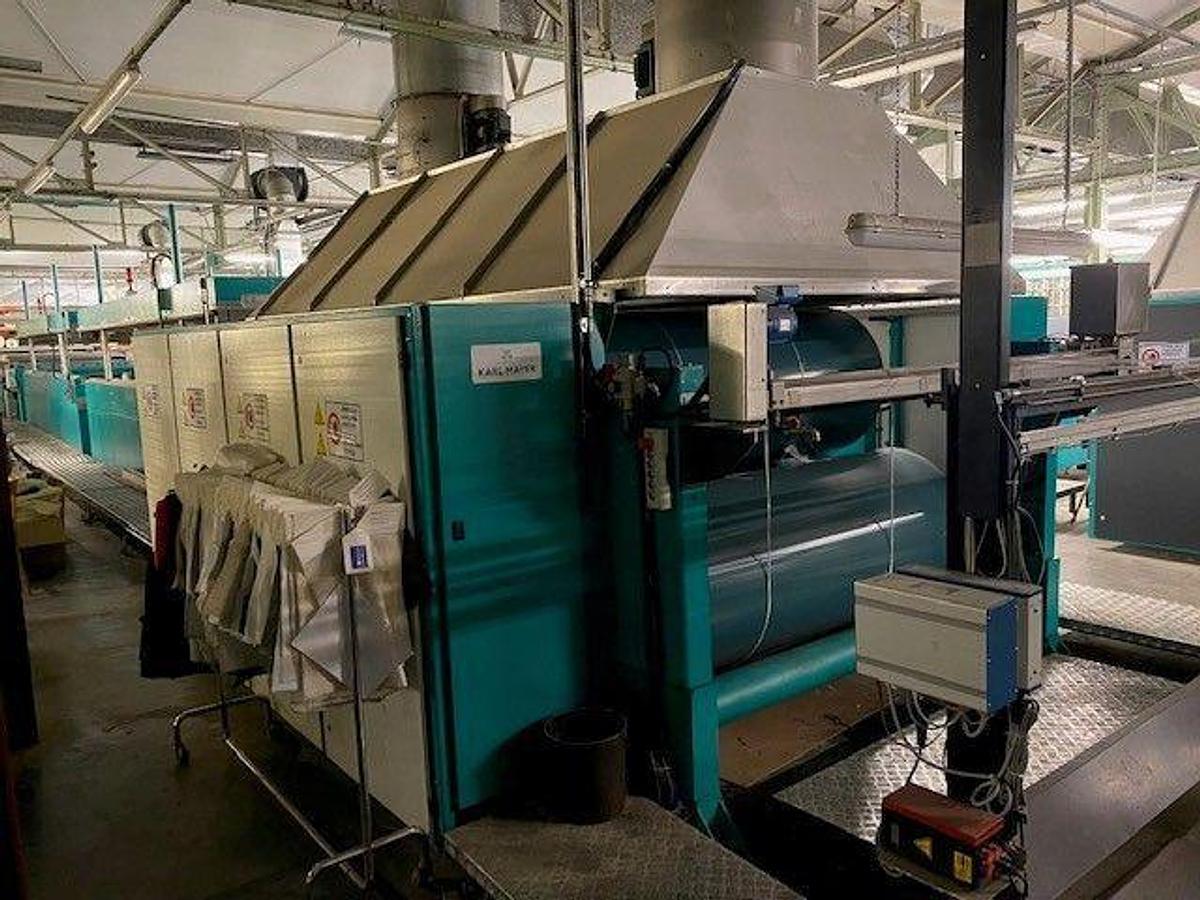

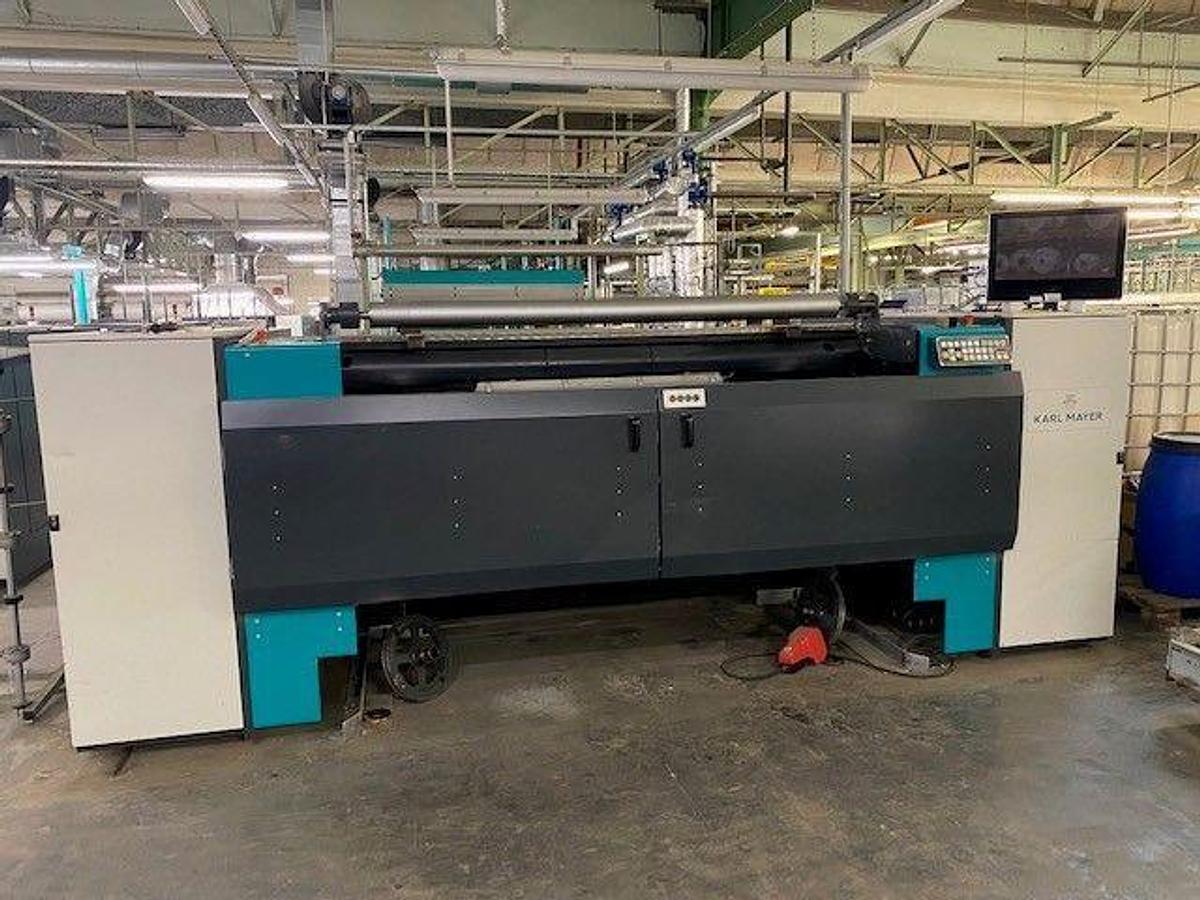

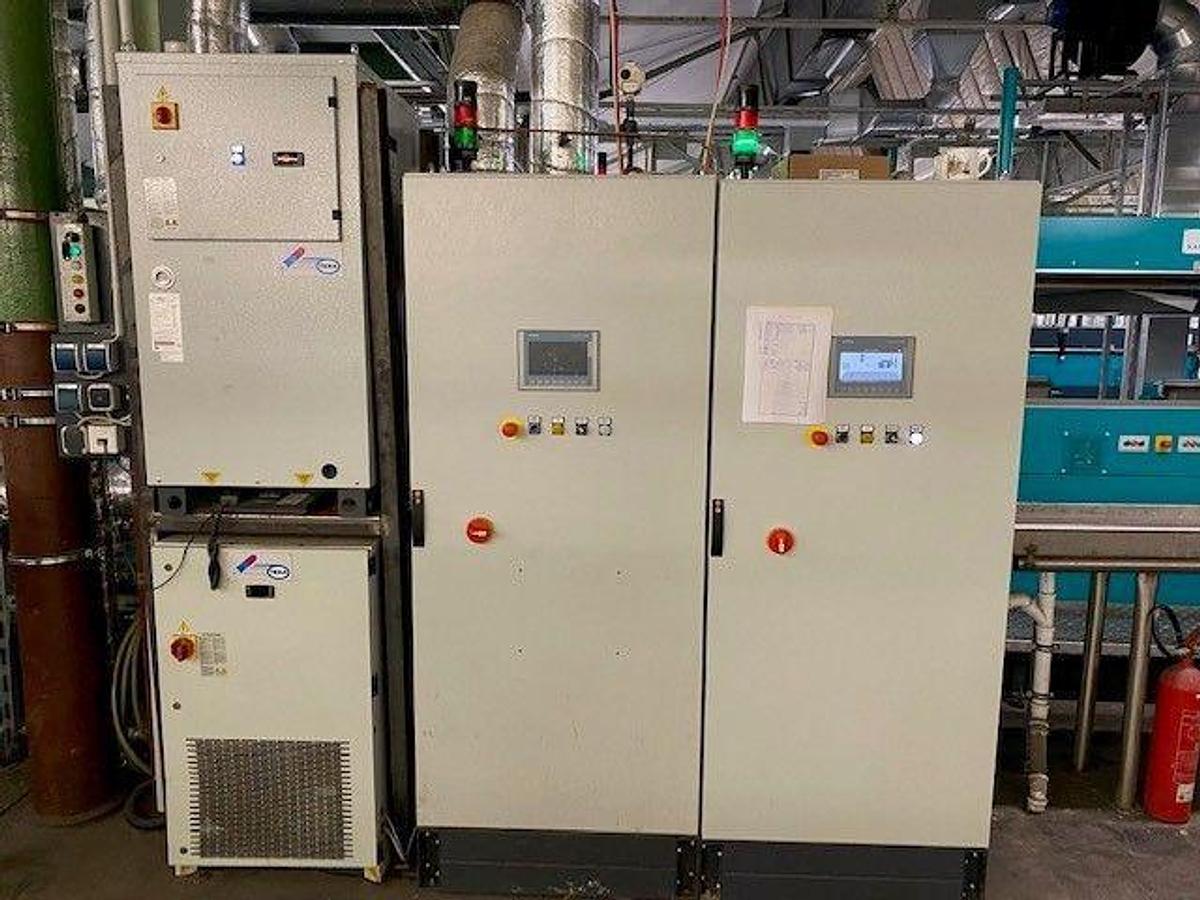

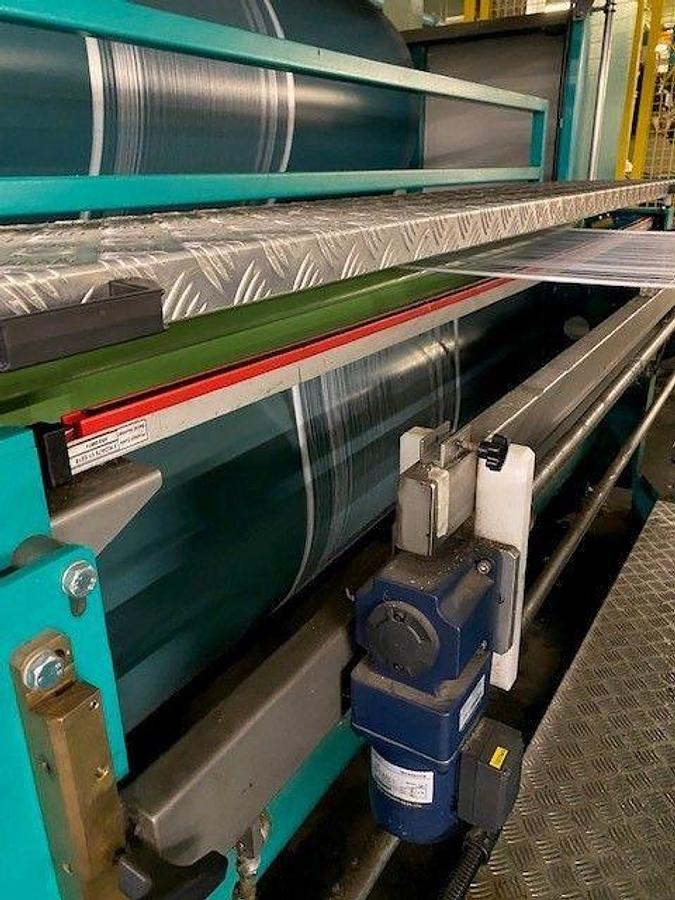

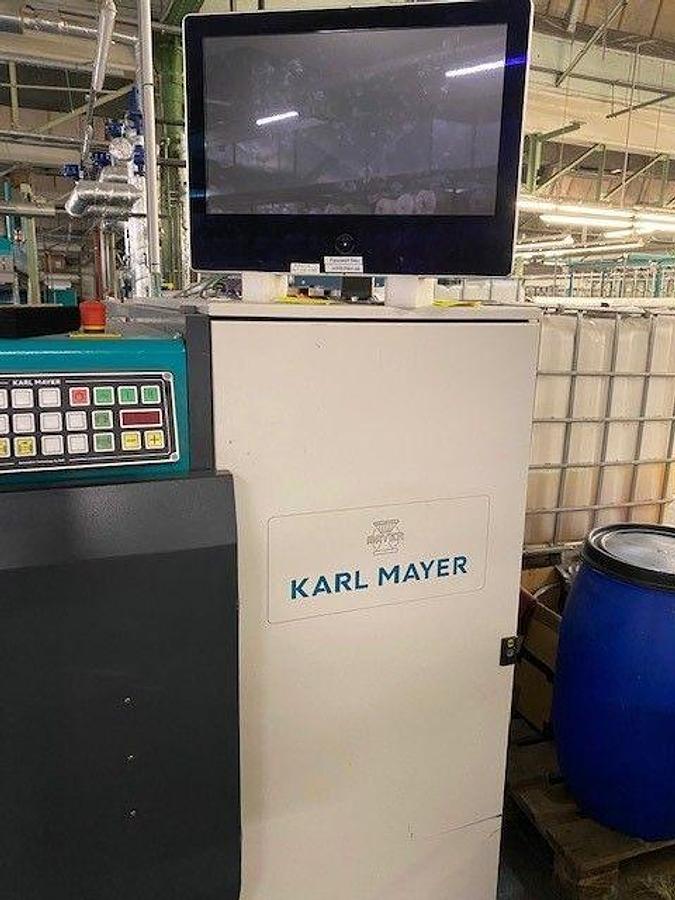

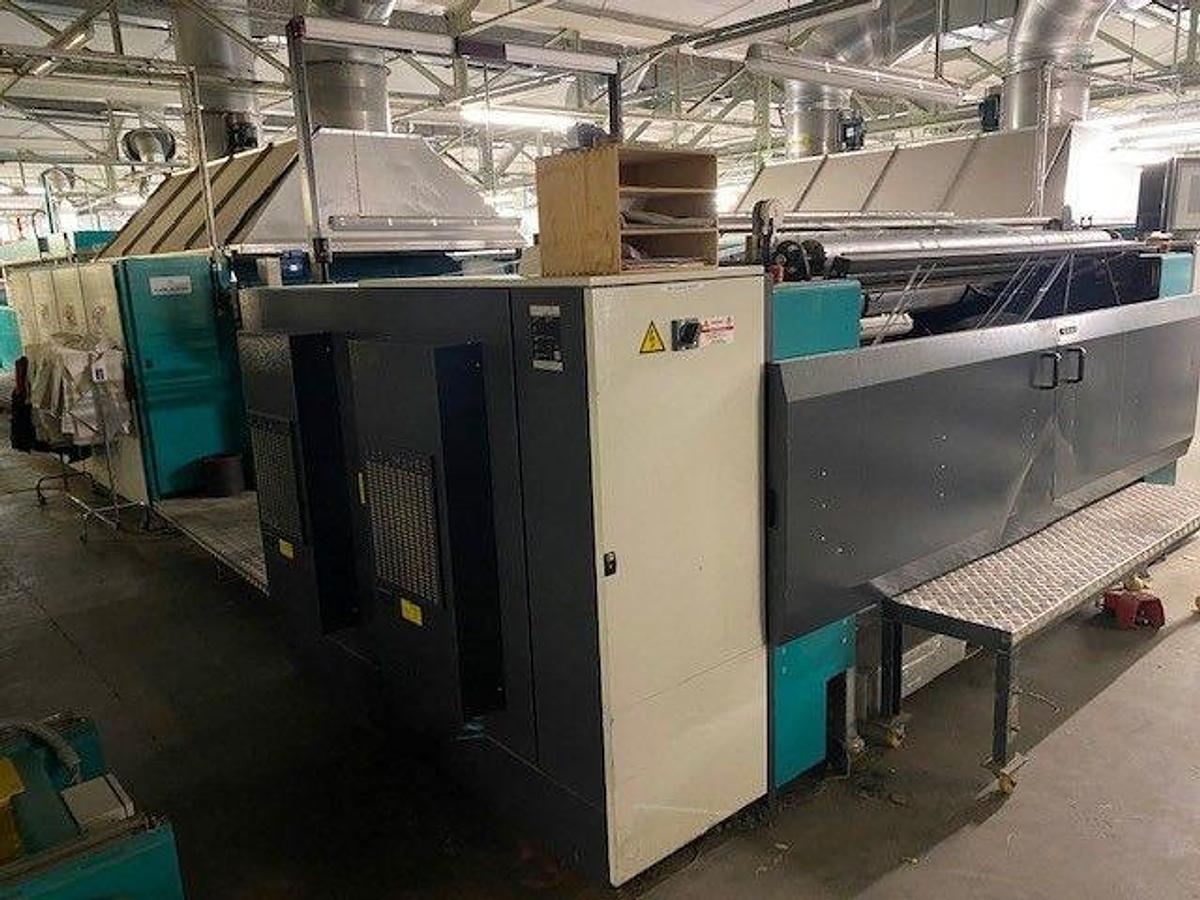

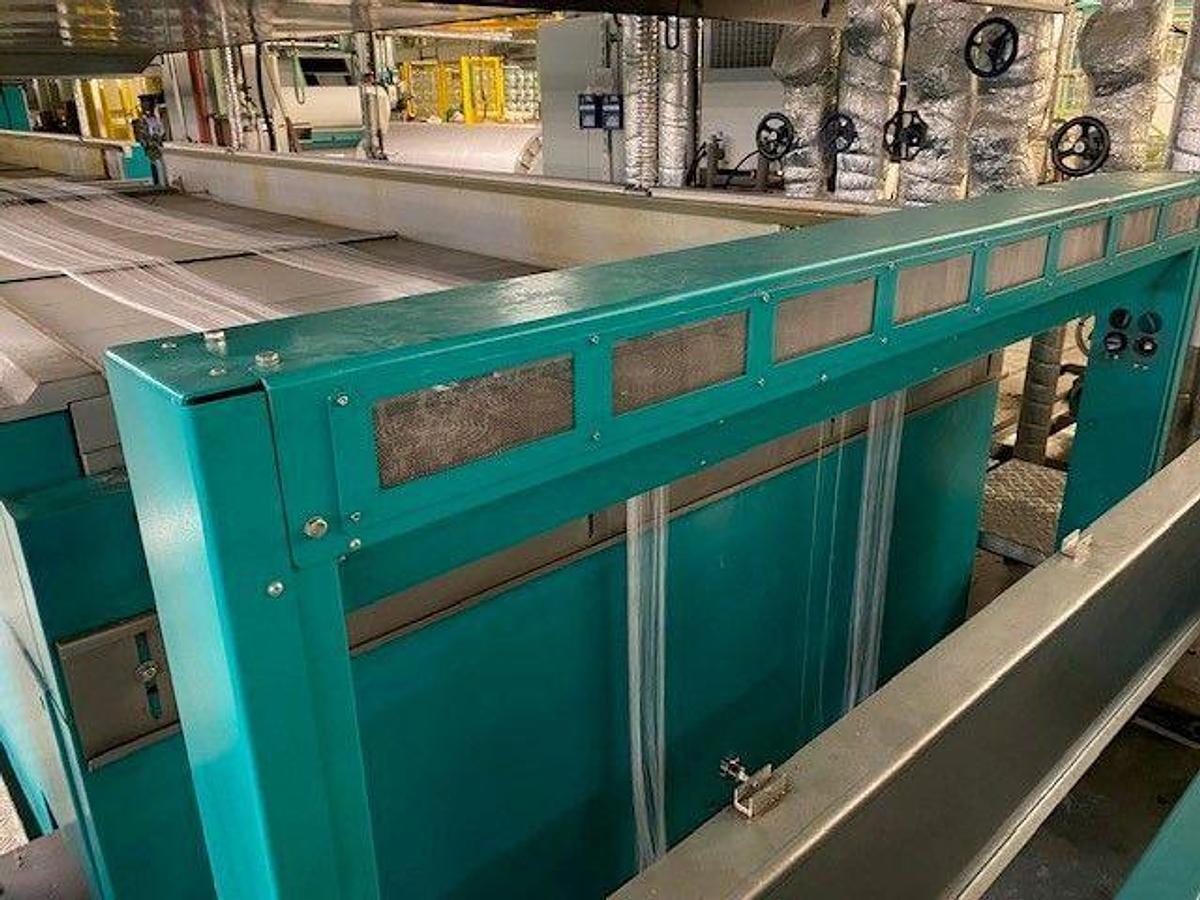

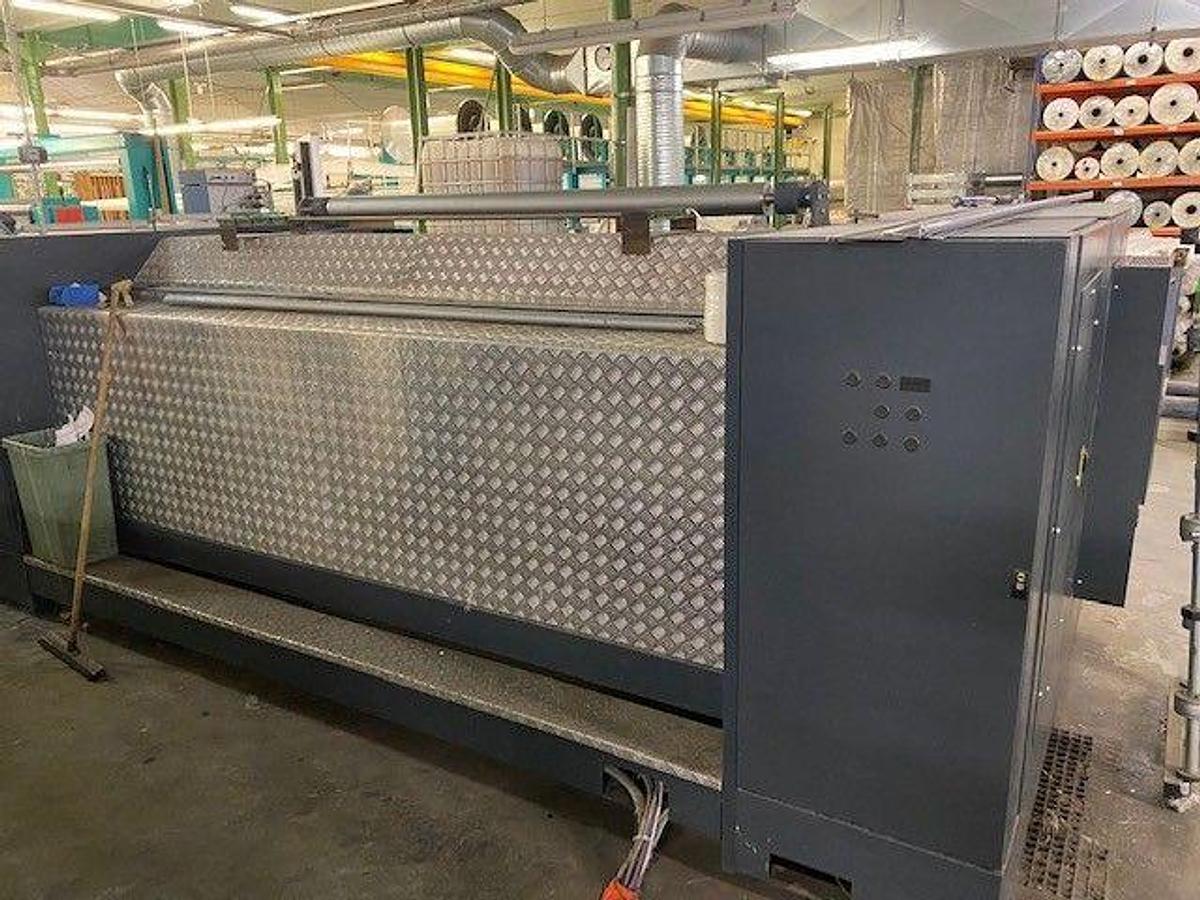

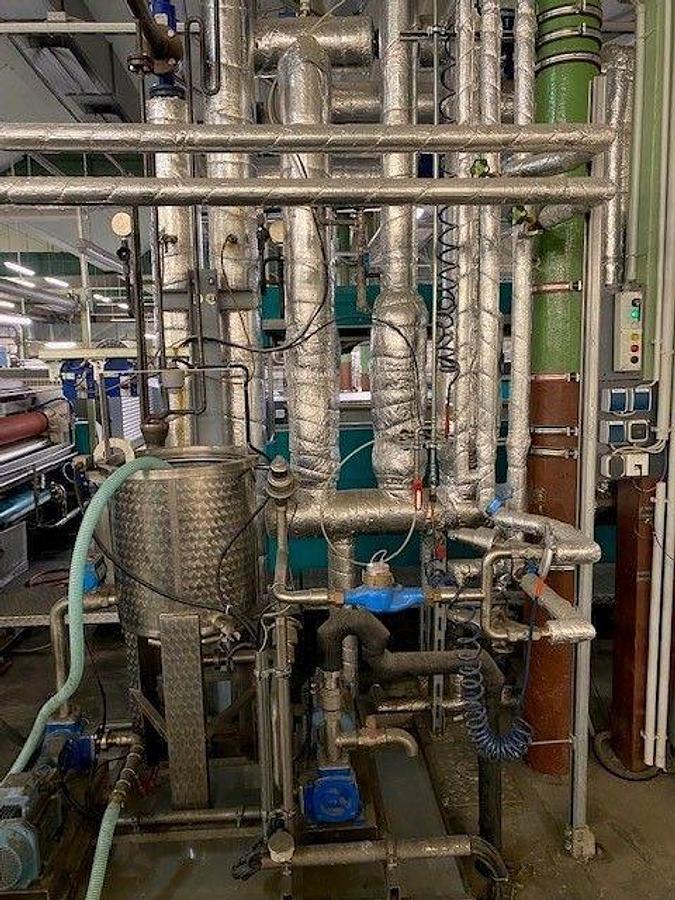

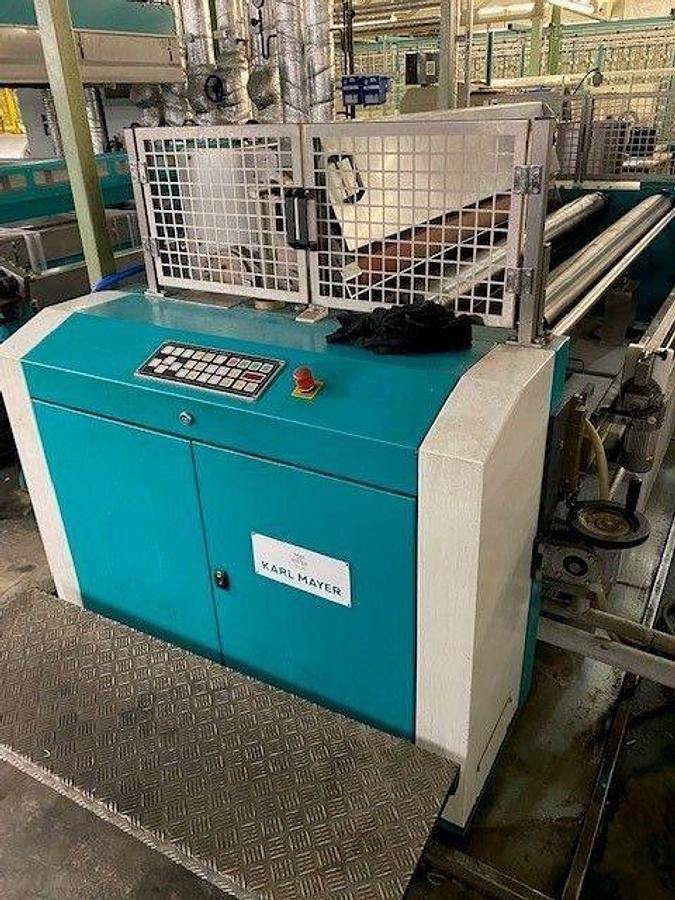

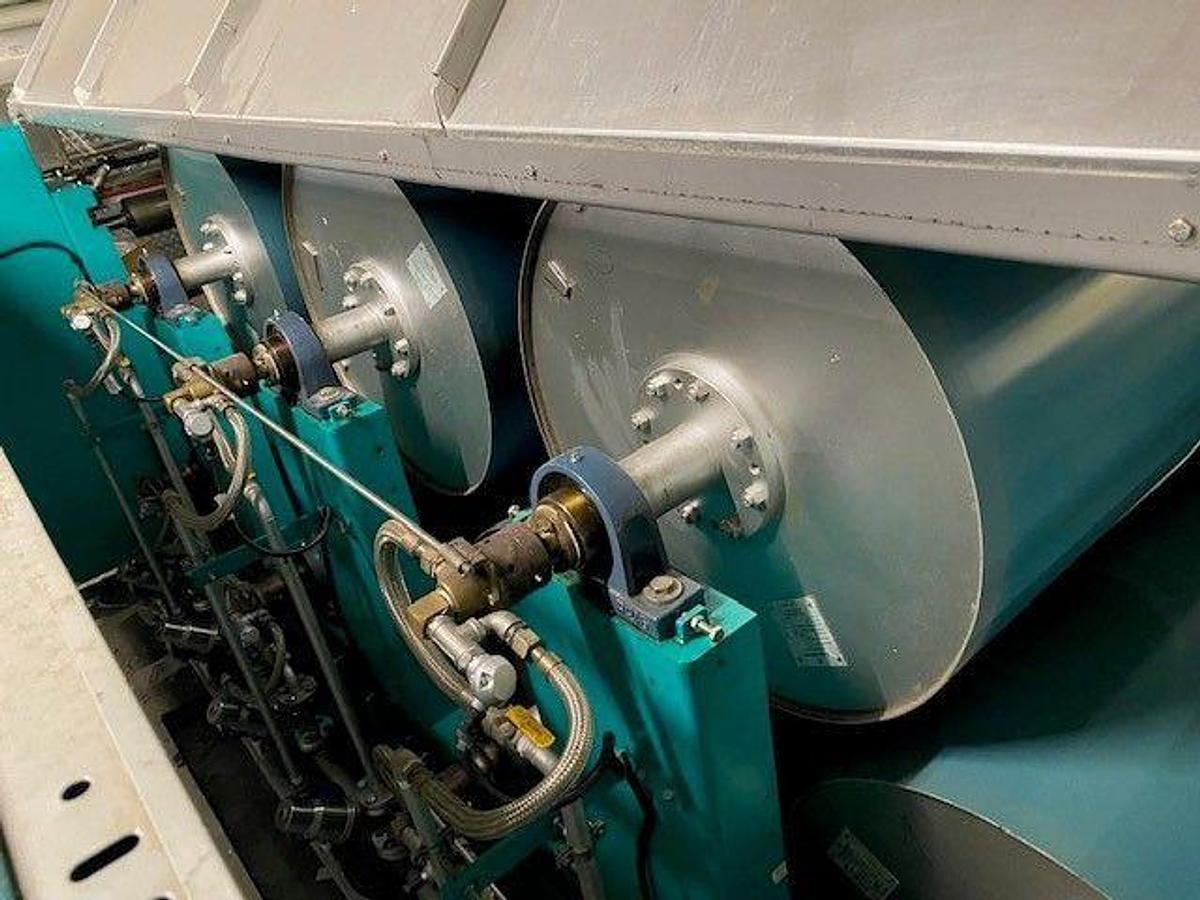

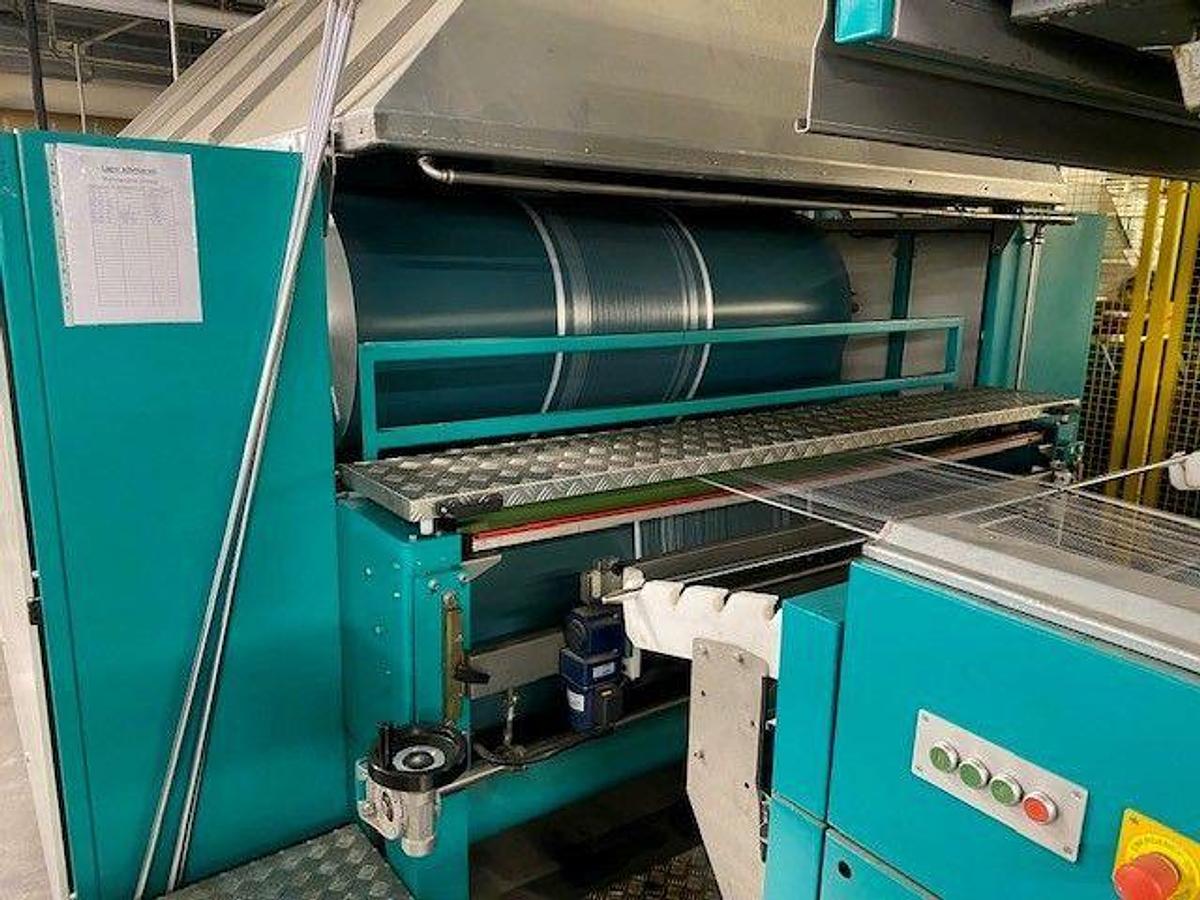

Single-end sizing unit KARL MAYER rotal type FILSIZE-S-F-1800 Year of construction 2018, working width 1800mm, single warp beam unroll device (The beam is driven by a motor and the tension is continuously controlled by a drum with a pressure cell, Length measurement, automatic diameter detection, motorised adjustable beam supports, hydraulic beam insertion and lift out system, tension 600N, min/max. diameter 300/1040mm), sizing bath type MPF for filament, Cooling device for the water-cooled sections, 2 air dryers type FA 6m (Hot air convection dryer), Separation of humid air by means of electric air aspiration, dryer type CD-F-7- with 7 dry cylinders all Teflon coated, waxing unit, beaming type BD, technical info: heating 220kW, Air temp 180)C (12 bar), water consumption 370 Kg/h, air circulation 8000m³/h @ 180°C, additional heater, Laserstop for yarn rupture, speed 500m/min, 600N, beaming head, command by KAMCOS Karl Mayer system.
