2003 GENKINGER EE-GYR 20/10

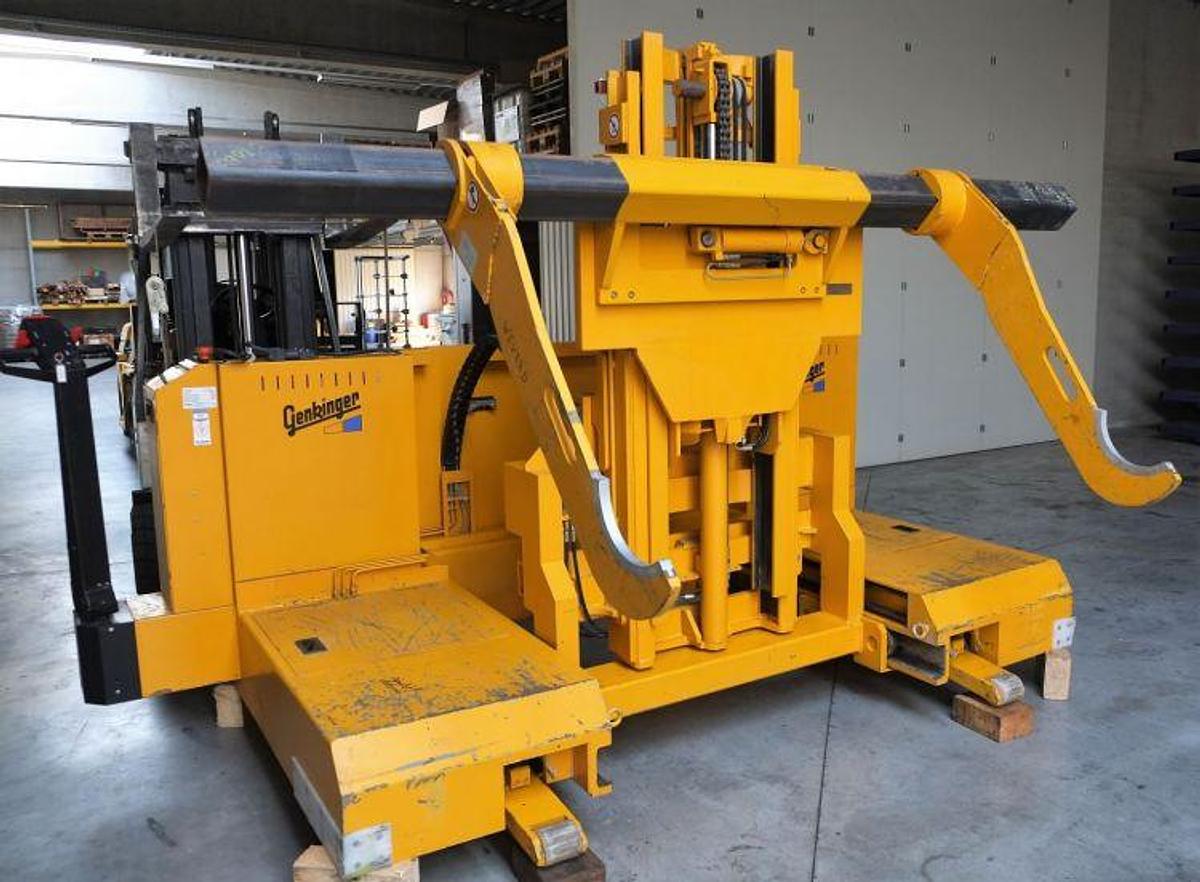

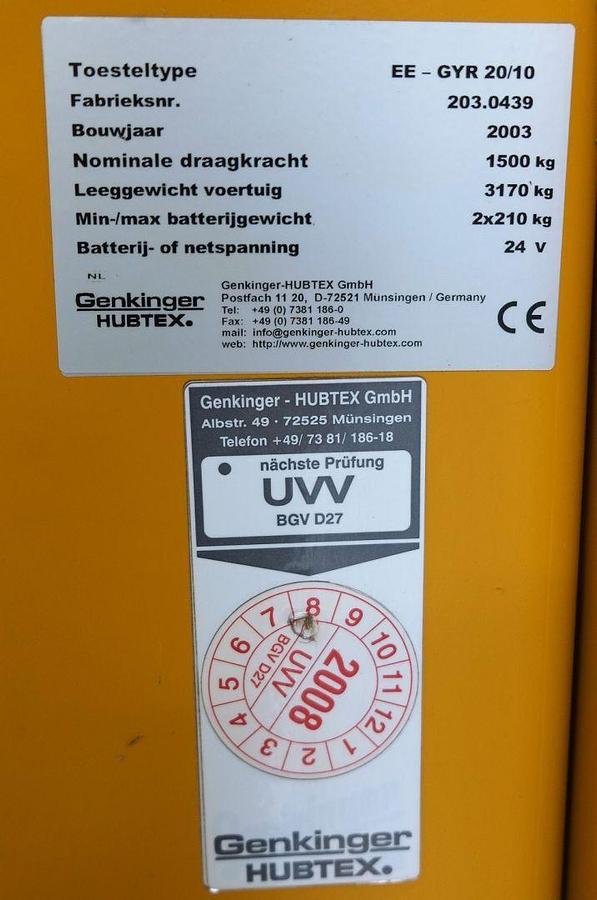

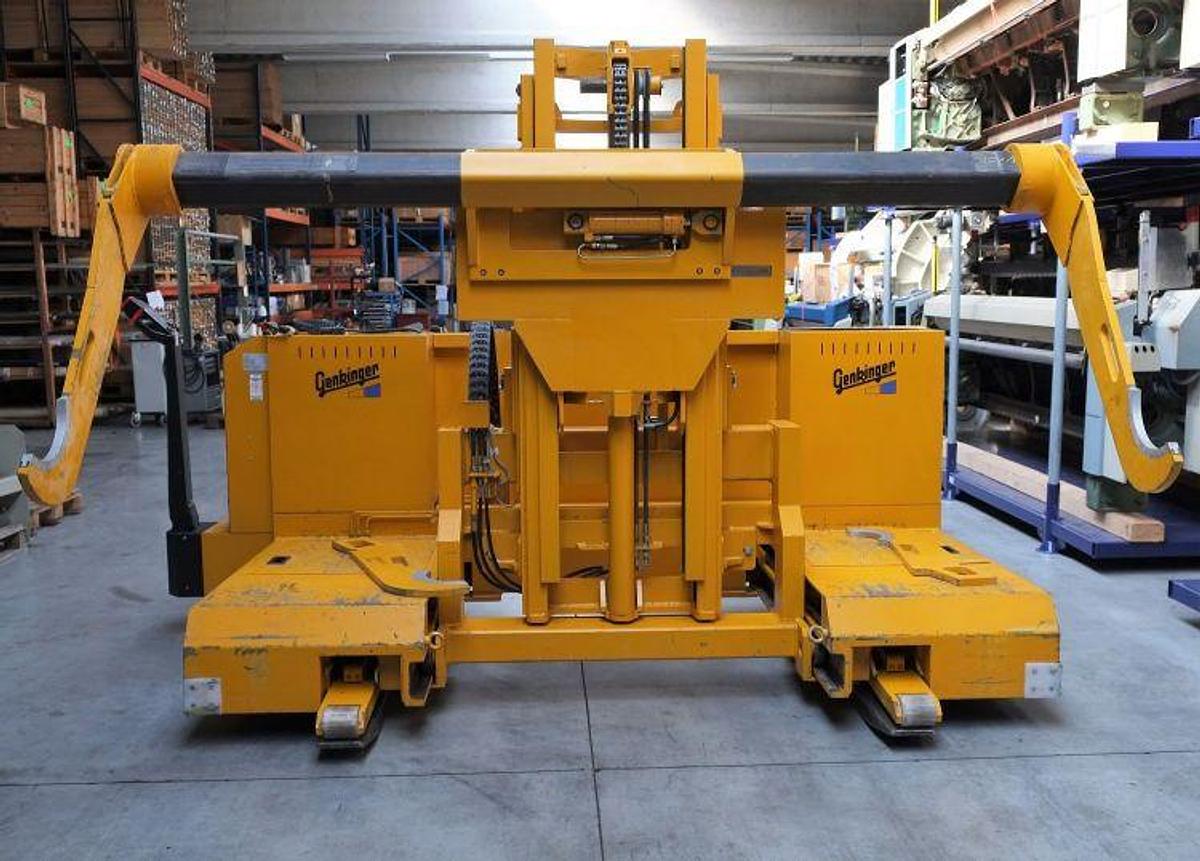

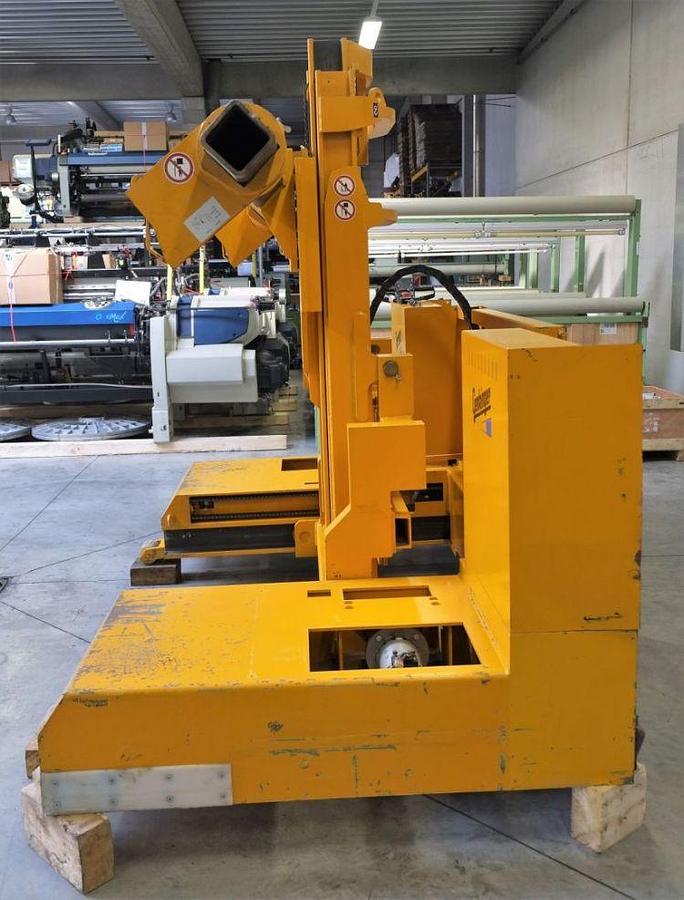

Electrical beam transporter GENKINGER type EE-GYR 20/10, serial number 203.0439 year of construction 2003, for changing ground and terry warp beams Ø flanges up to 1200mm in weaving mill. Electrical side correction arms : 150mm, minimum and maximum distance between arms : 1160mm until 2940mm, distance between 2 short arms and 2 long arms from center point beam until long horizontal traverse: 650mm and 900mm; min. and max. till height arms : 150mm and 1800mm; 171,4 production hours. without battery’s, without battery charger 24 Volt. Max. Nominal weight : 1500kg, empty weight transporter : 3170kg, battery weight : 2 x 210kg, Voltage : 24V. Distances length, width and height : 3550mm x 1750mm x 2160mm (lowest position) and 2700mm (highest position).
